Cube Camera Installation and Setup (XV-CUBE-1)

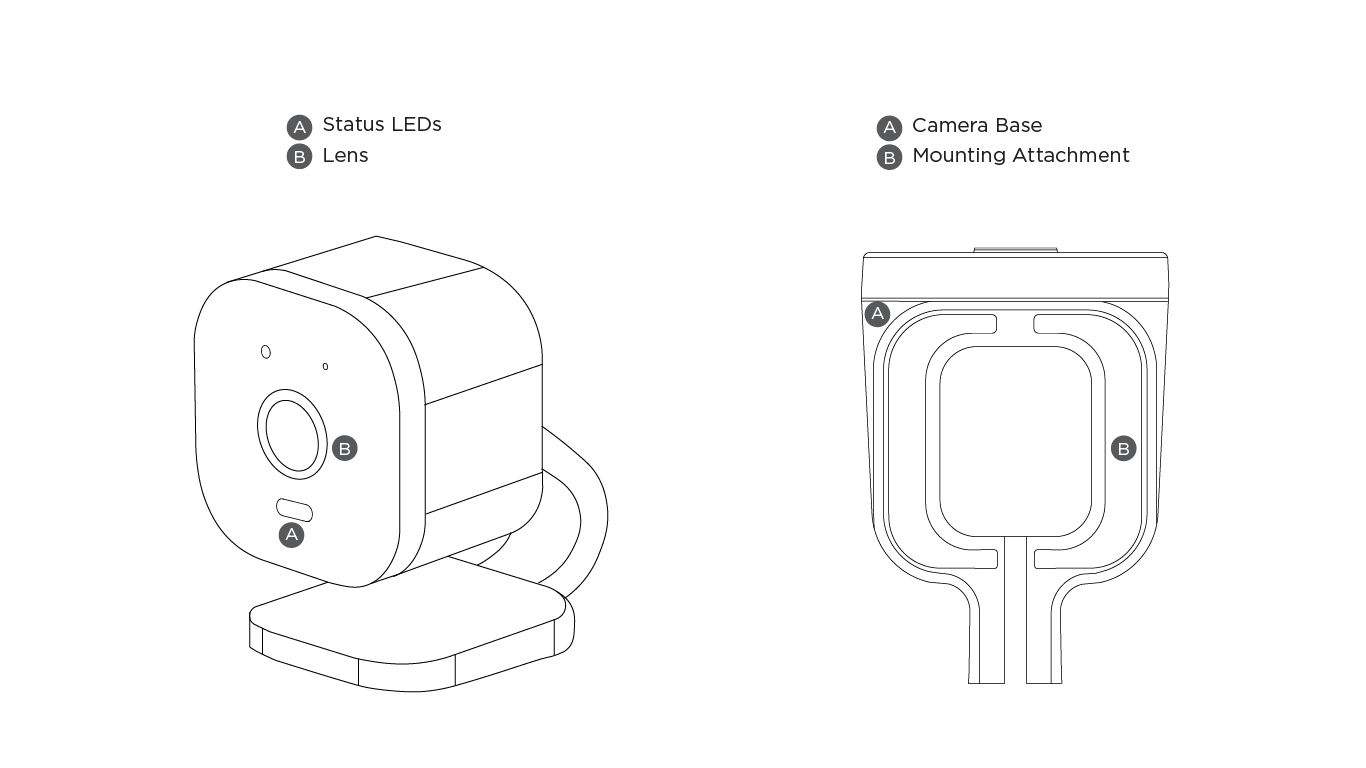

Camera Overview

XV Cube Cameras with AlarmVision™ are indoor video cameras that integrate with the XR Series™ Panel and feature on-edge analytics, including person and vehicle detection.

Virtual Keypad users can view live and recorded HD video clips, define video actions, and receive push notifications of real events in real time for real results.

You will need an active Dealer Admin account at dealer.securecomwireless.com to activate the camera.

Note: Ensure the XR Series Panel is updated to Version 241 or higher.

What’s Included

• XV Cube Camera

• Mounting Hardware Pack

• Camera Mounting Plate

• 12V 2A Plug In Power Supply

• XV Camera Quick Start Guide

What You’ll Need

• Phillips Screwdriver

• 3/16” Drill Bit

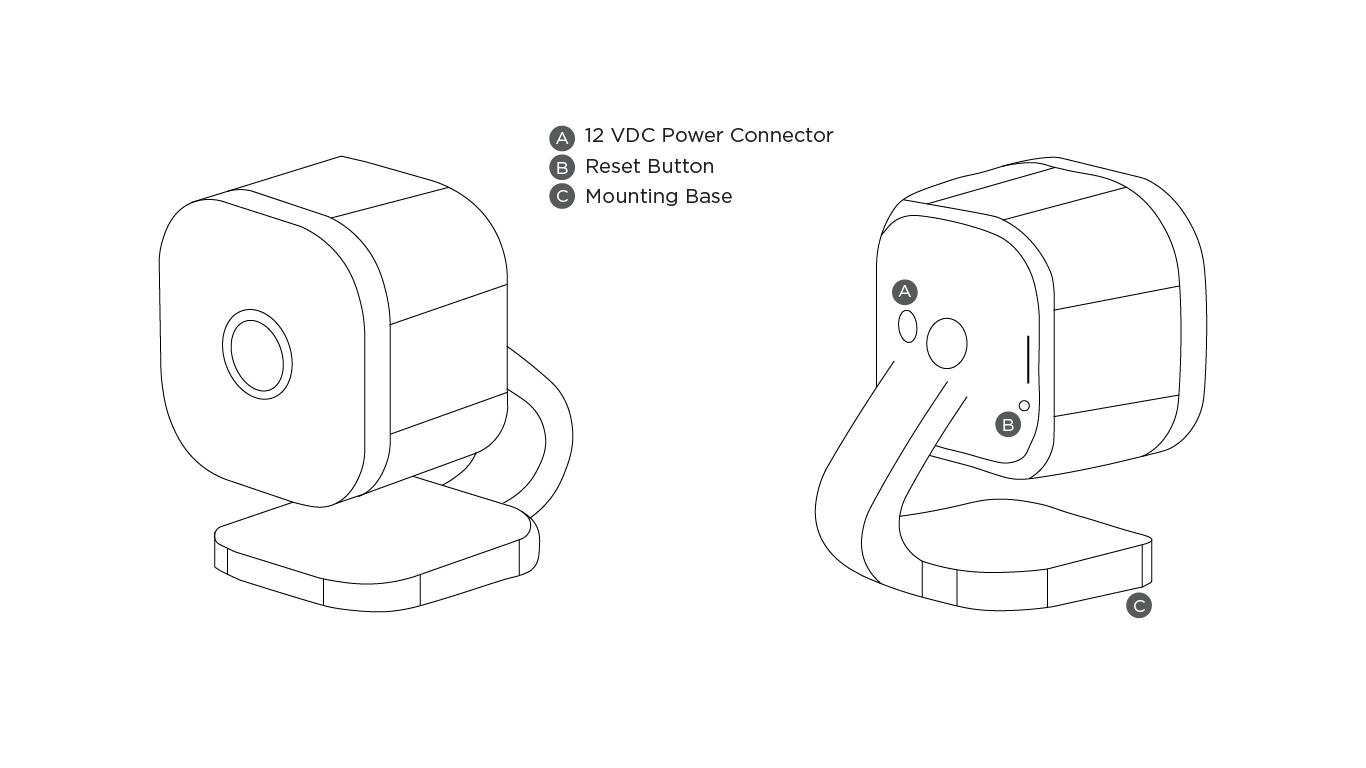

Power the Camera

Standard Power Connection

To use this camera with a Wi-Fi connection, connect a DMP Model V-12V-PS Plug In Power Supply to the camera power connector.*

*Camera power connectors are compatible with 1 Amp or higher.

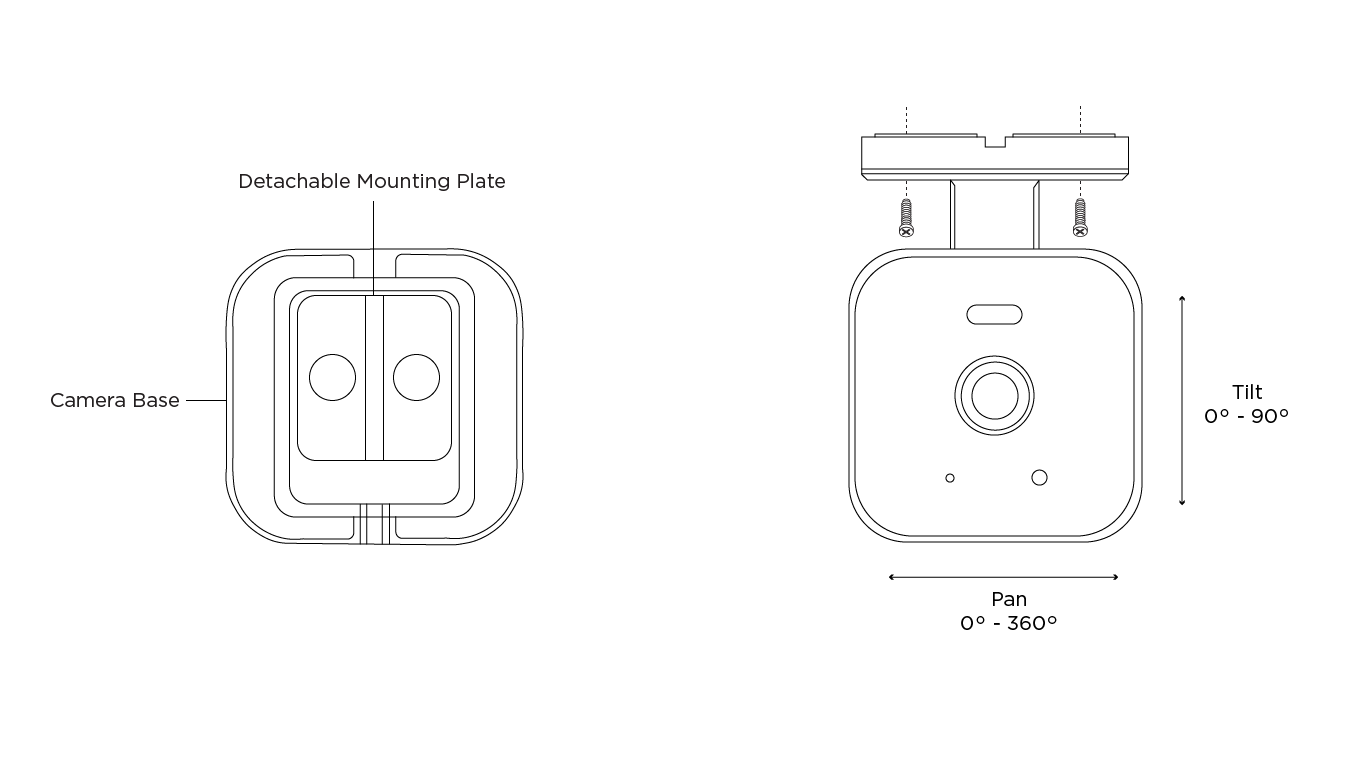

Mount the Camera

Mount and Adjust the Camera

1. Stick or place the mounting template at the location you want to mount the camera. Ensure the mounting template is properly placed for cable management.

2. Drill holes into the mounting template and insert the wall anchors in the holes (optional).

3. Line up the camera mounting plate with the pre-drilled holes or wall anchors and use the included screws to mount it.

4. Press the camera base into the camera mounting plate. The camera will click into place.

5. Adjust the tilt by gently pushing the camera lens forwards and backwards. The camera lens will tilt on the neck of the attached base.

6. Adjust the pan by removing the camera from the mounting plate and rotating it in the direction you want it to face before clicking the camera into place on the mounting plate.

   • Note: The mounting surface should be capable of holding five times the camera’s weight.

Enable XV Series Cameras with AlarmVision™

1. Log into Dealer Admin.

2. Find the customer and select the relevant system. Click Edit.

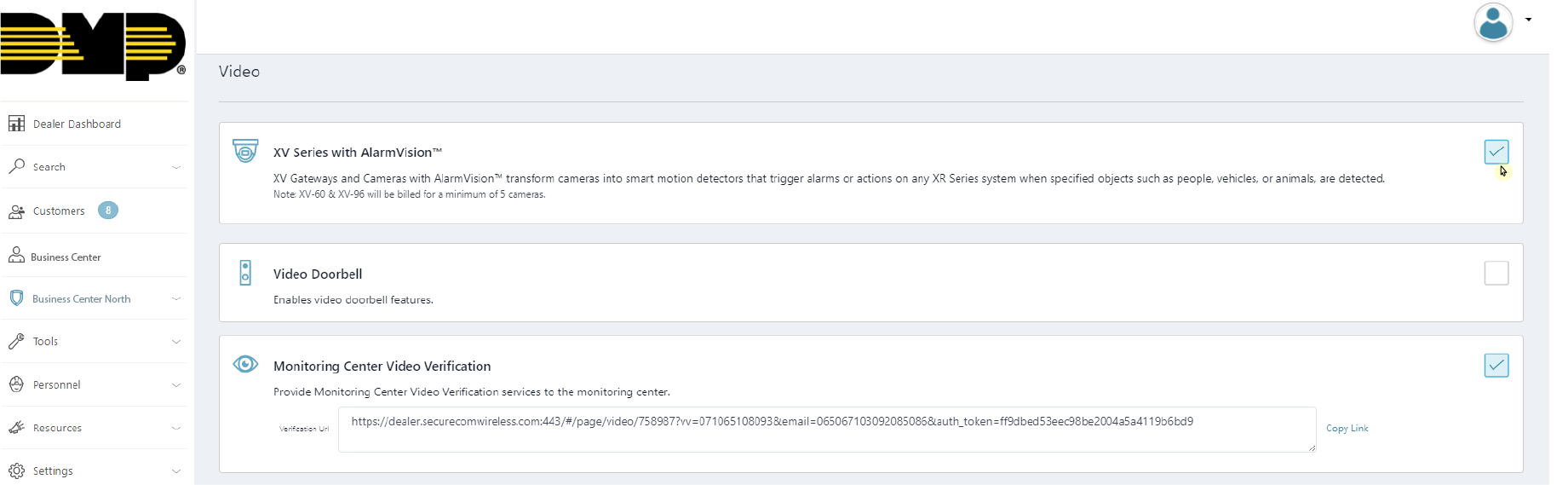

3. In Video, click the XV Series with AlarmVision™ checkbox, then click Save.

Add the Camera to System

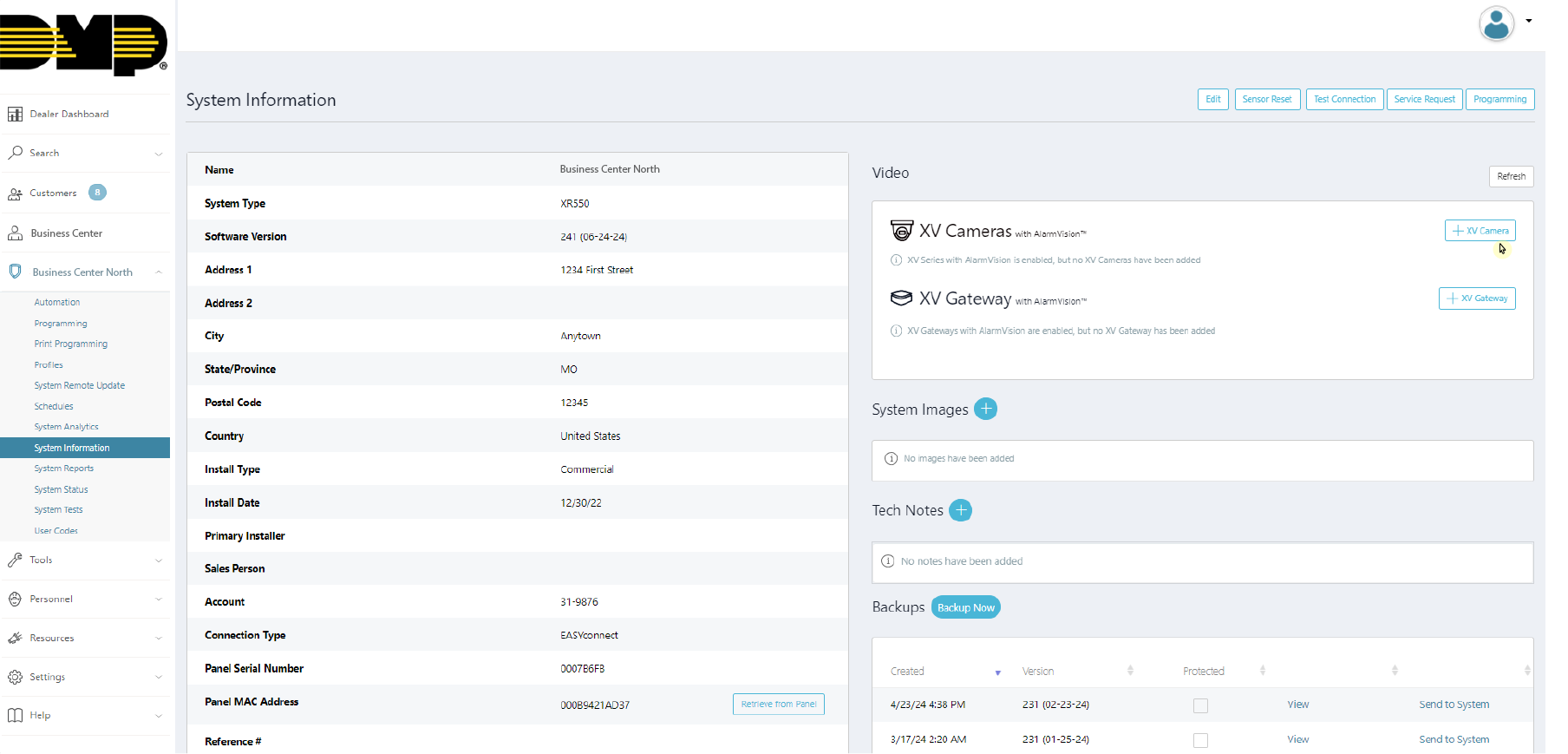

1. In the XV Series with AlarmVision™ section, click + XV Camera to add an XV Series camera.

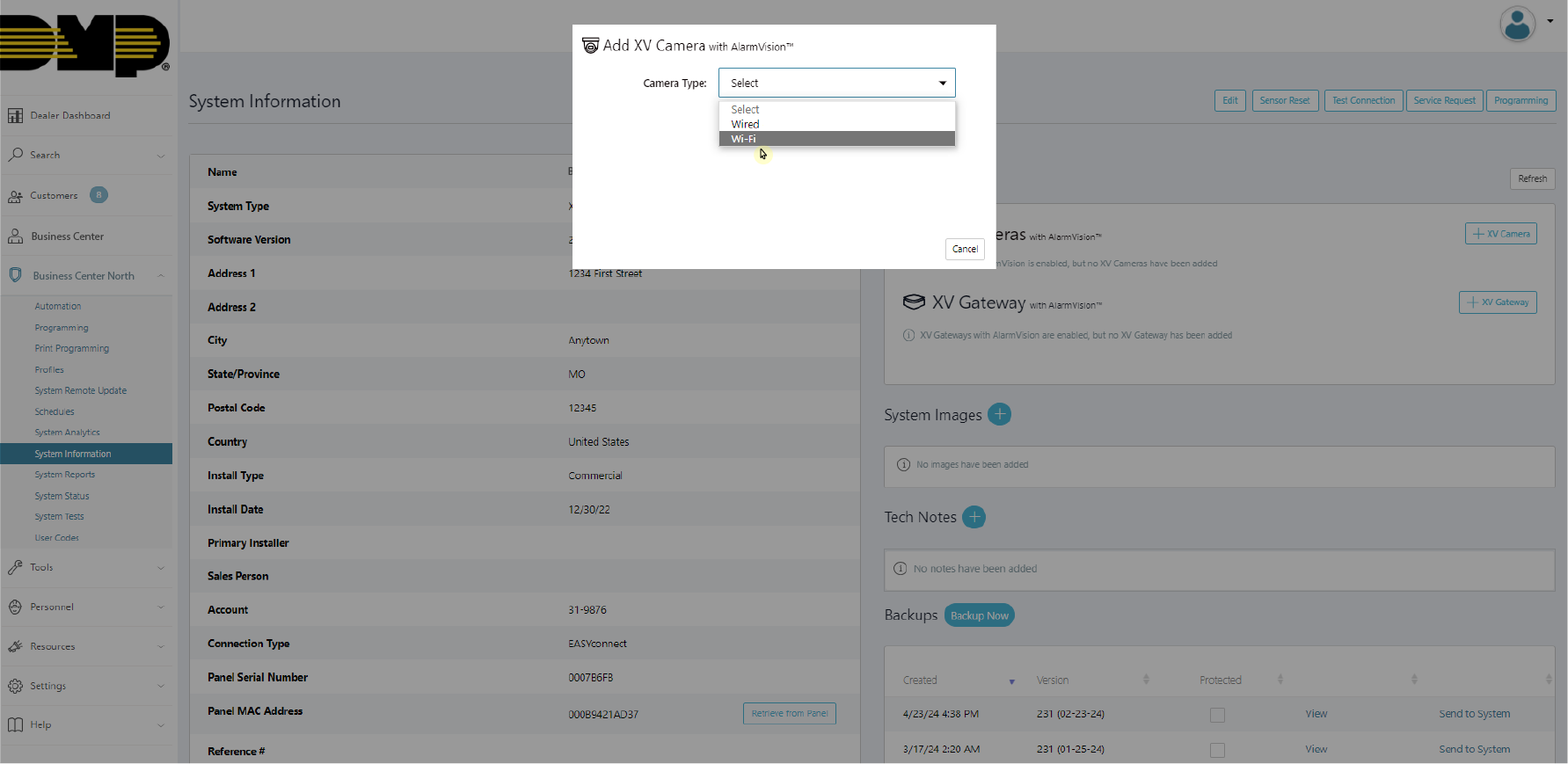

2. Select the Wi-Fi camera type.

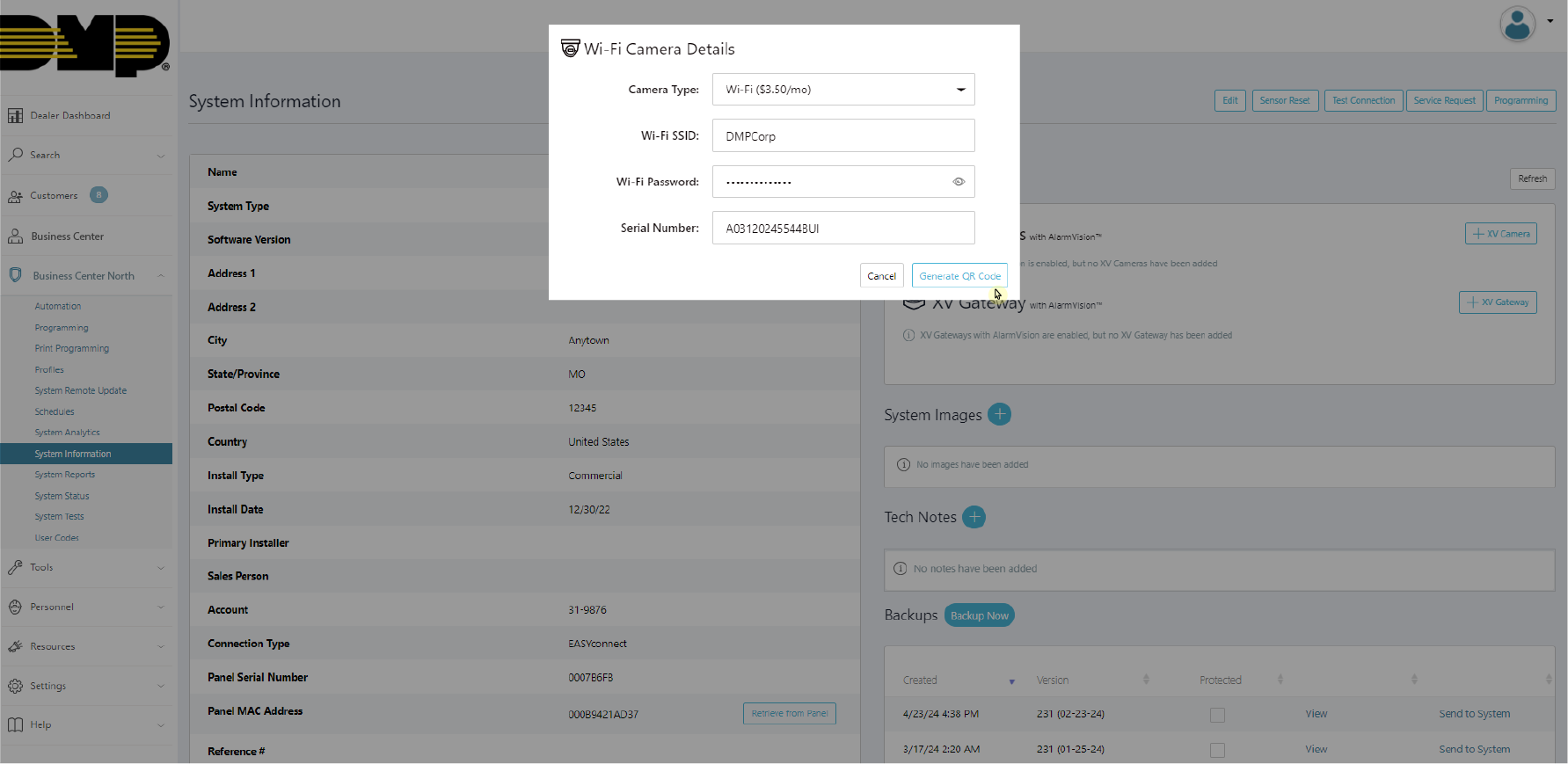

3. Type the Wi-Fi SSID and Wi-Fi Password that you want the camera connected to. Type in the camera Serial Number and click Generate QR Code.

   • Note: QR codes are single use per camera. Dealer Admin will provide the option to add additional Wi-Fi cameras after each camera has been added to the network.

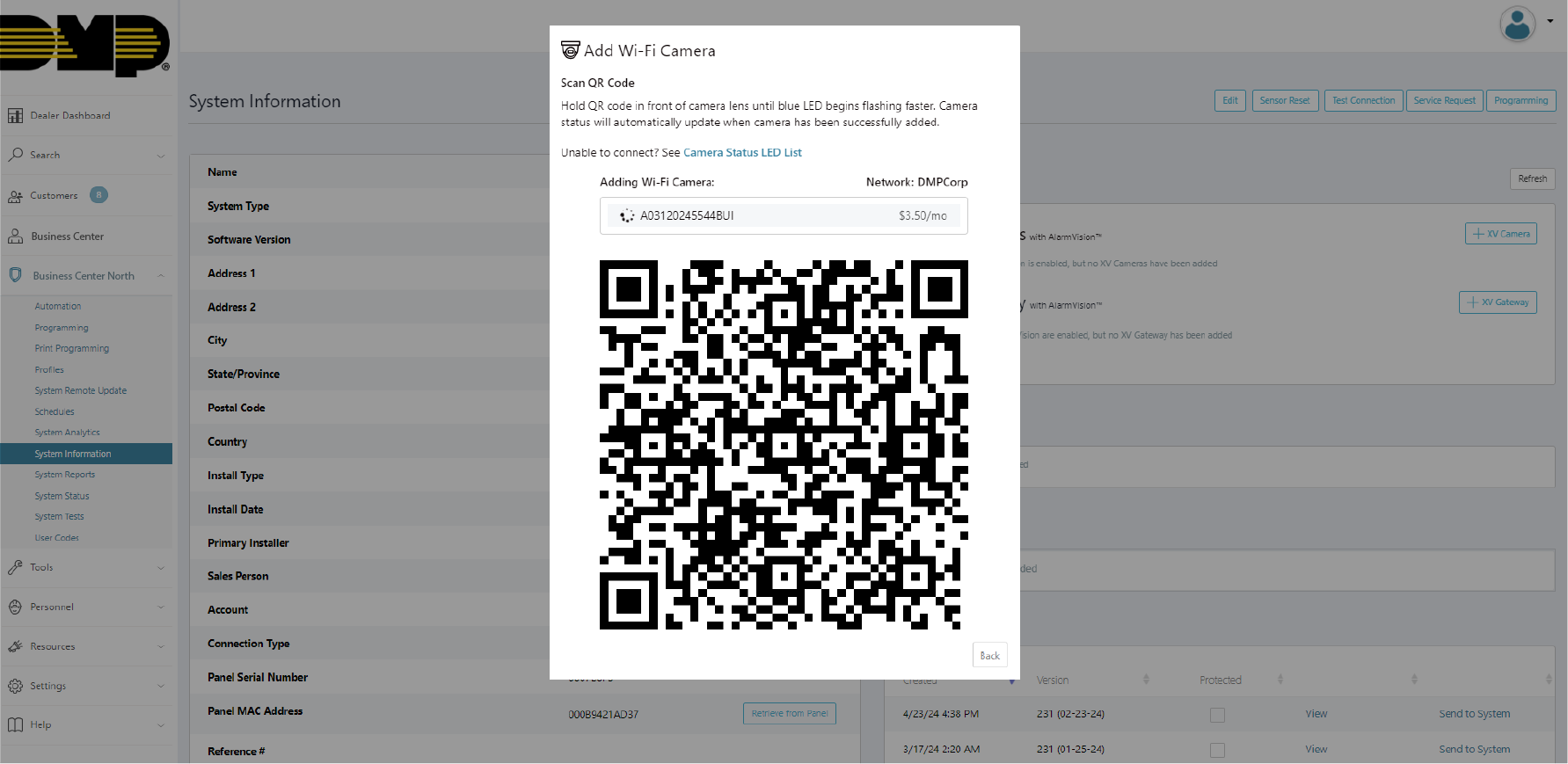

4. Hold the QR code in front of the camera lens until the blue LED begins to flash faster. Dealer Admin will automatically update after the camera has been successfully added. To troubleshoot camera issues, refer to the Camera Status LED List for more information.

   • Tip: Ensure screen brightness is up and protective coverings have been removed from the camera lens. Hold camera approximately 6-12inches from QR code and slowly adjust spacing until QR code is read.

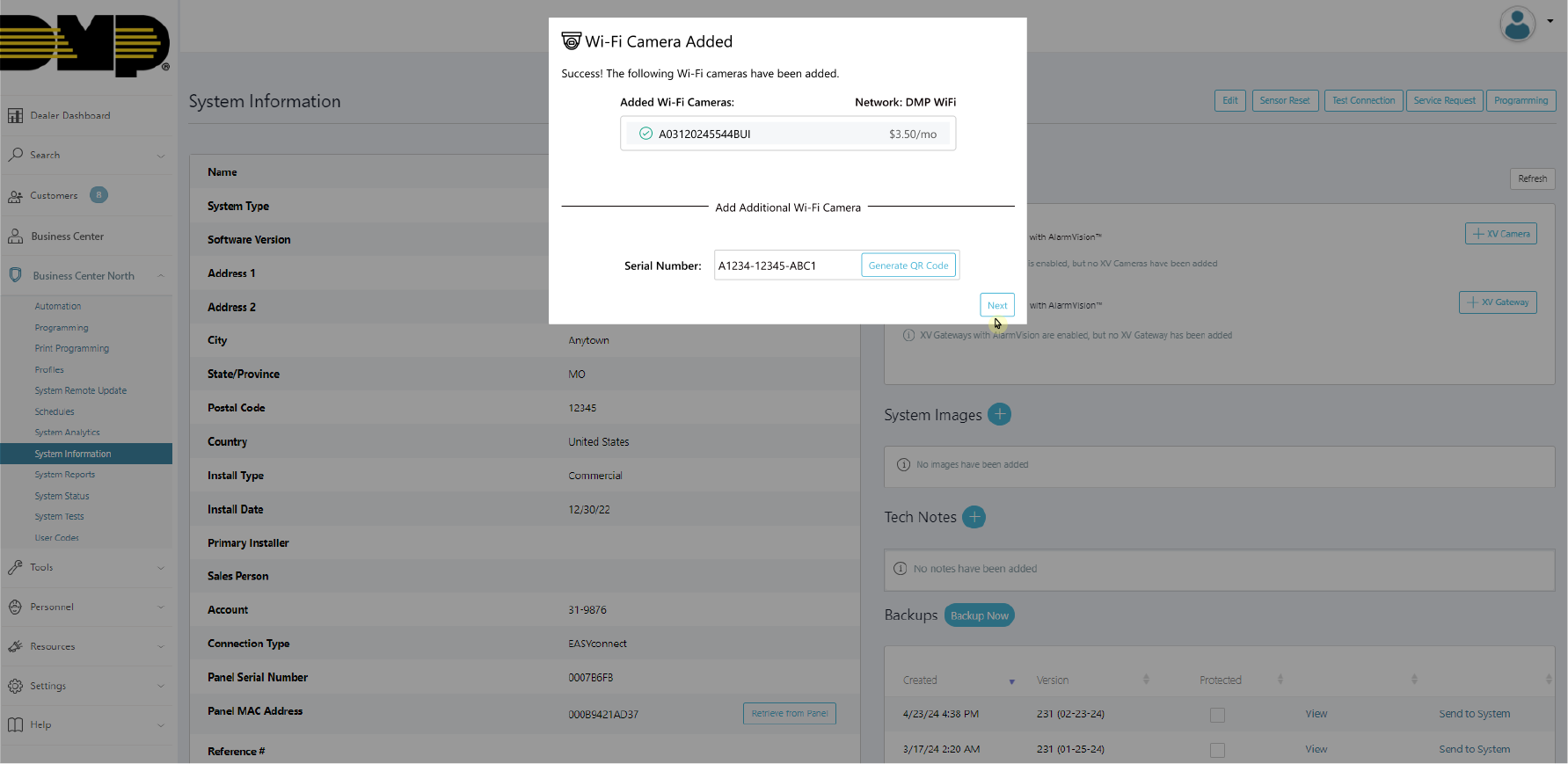

5. To add additional Wi-Fi cameras to the same network, enter the additional camera’s serial number and click Generate QR Code. Repeat step 4.

6. To add the camera as a Camera Device Type, click Enable AlarmVision.

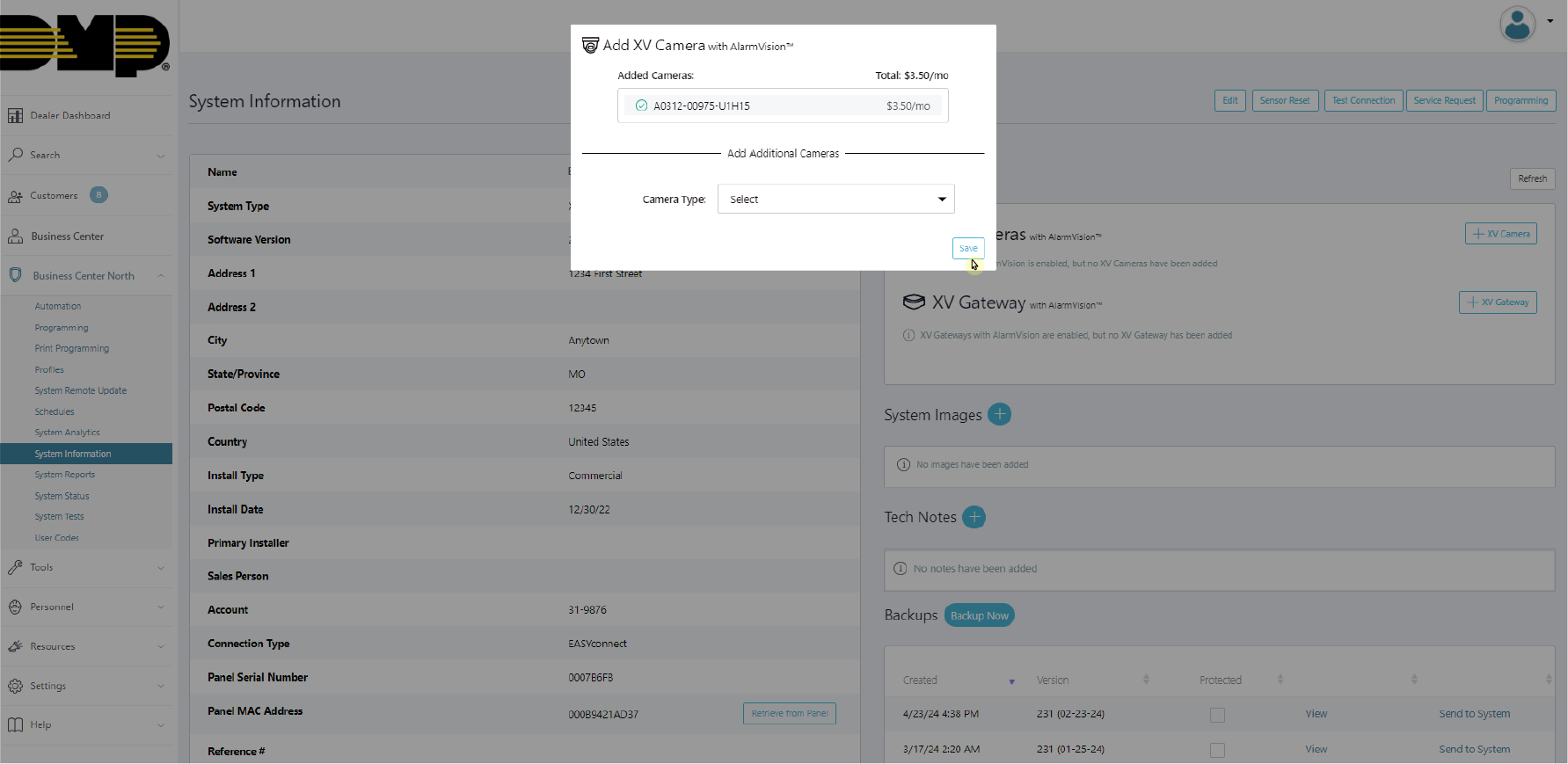

7. When all of the Wi-Fi cameras have been added, click Next. Continue to add additional cameras to the system or click Save to finish activating the camera(s).

To troubleshoot camera issues, refer to the Camera Status LED List for more information.

Edit the Camera

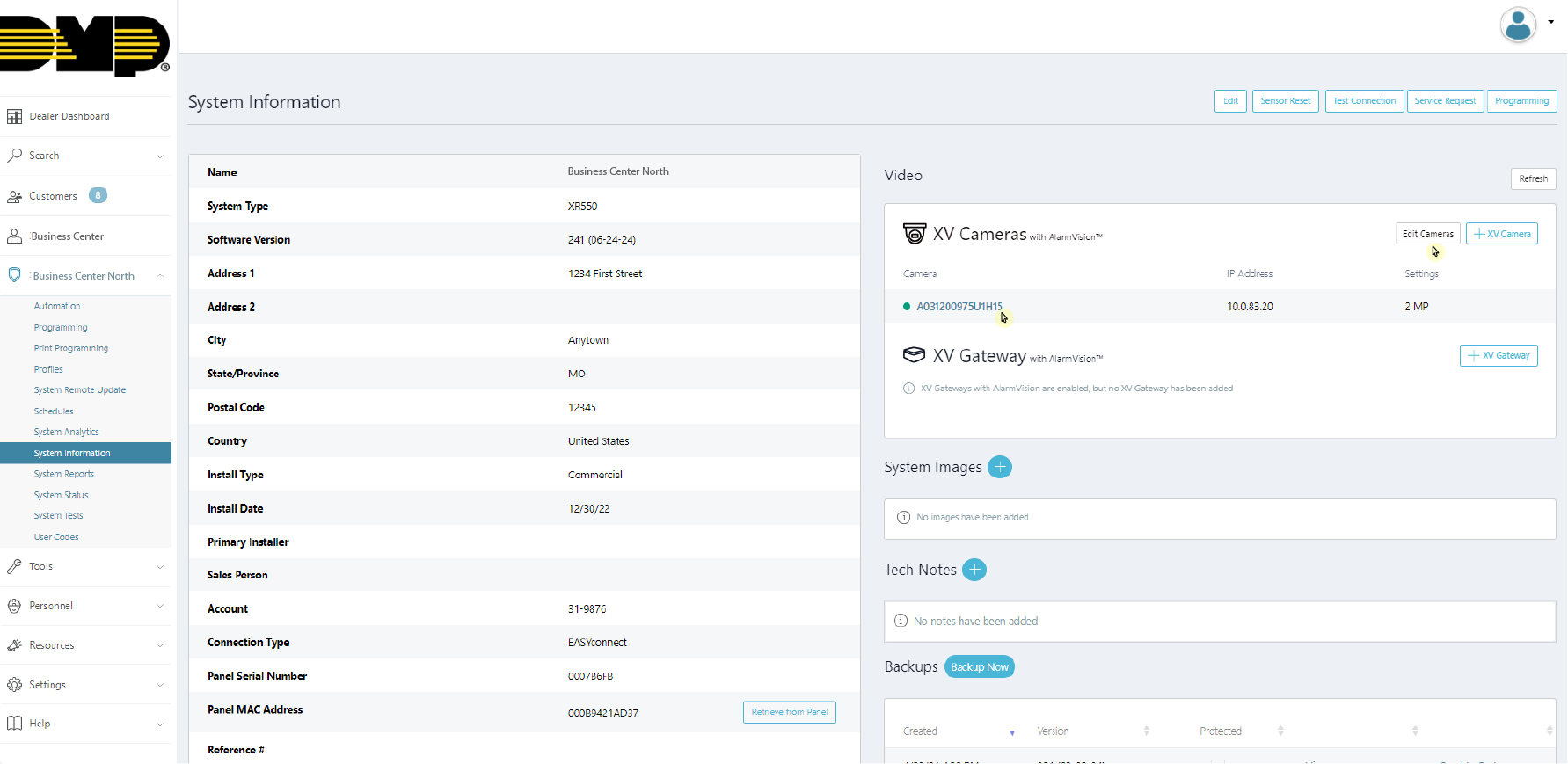

1. Select the camera(s) you want to edit.

   1. Edit multiple cameras by clicking Edit Cameras in the XV Series with AlarmVision™ section.

   2. Edit a single camera by clicking the camera name in the XV Series with AlarmVision™ section.

2. Enter a name for the camera.

   • Note: The camera name will default to the camera serial number.

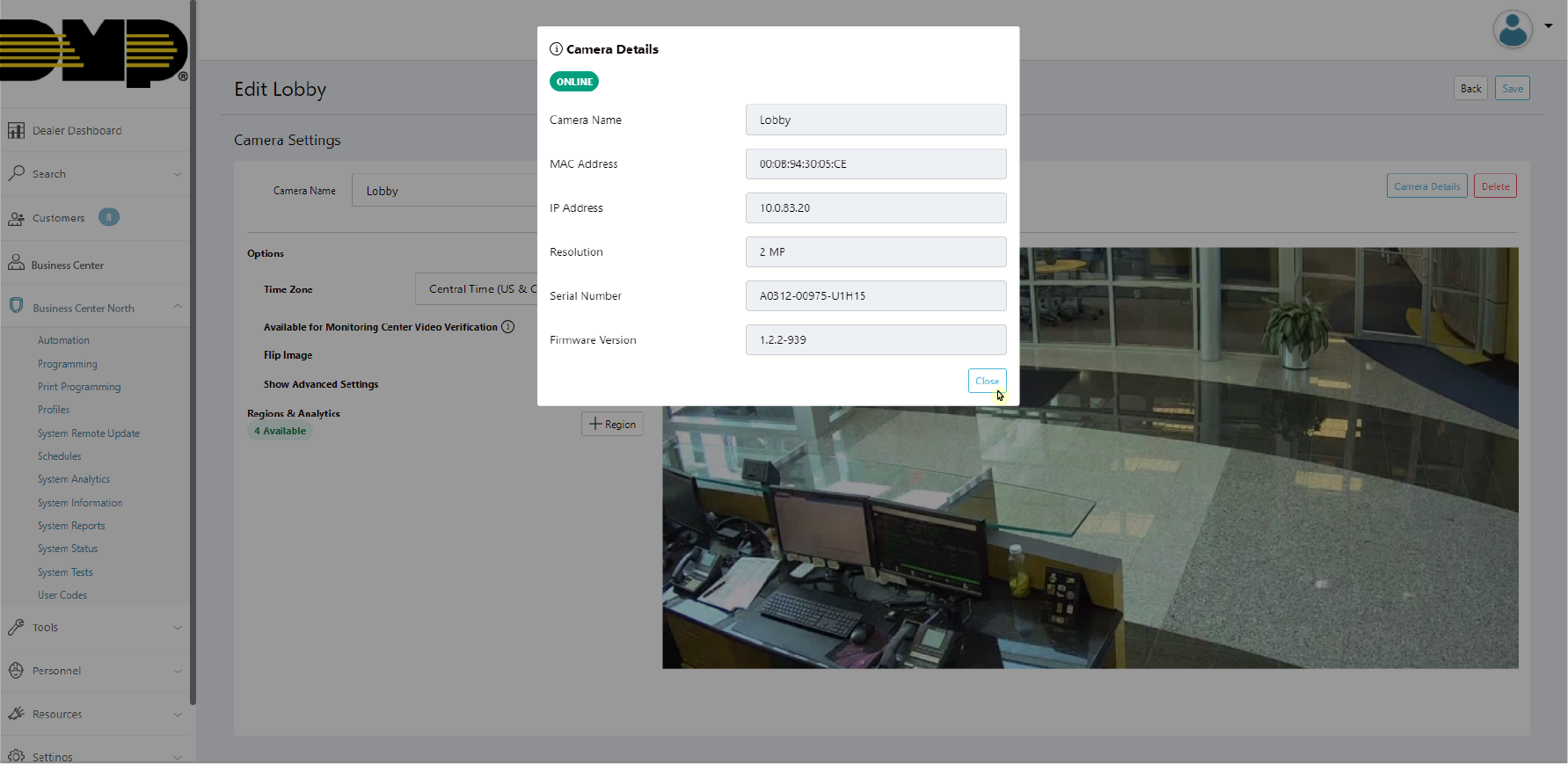

3. Click the Camera Details button in the top right corner to view the following camera information:

   • Camera Connection Status

   • Camera Name

   • MAC Address

   • IP Address

   • Resolution

   • Serial Number

   • Firmware Version

4. In Options, enable the following options:

   • Available for Monitoring Center Video Verification (if enabled for the system)

   • Flip Image (0, 180 degrees)

   • Show Advanced Settings

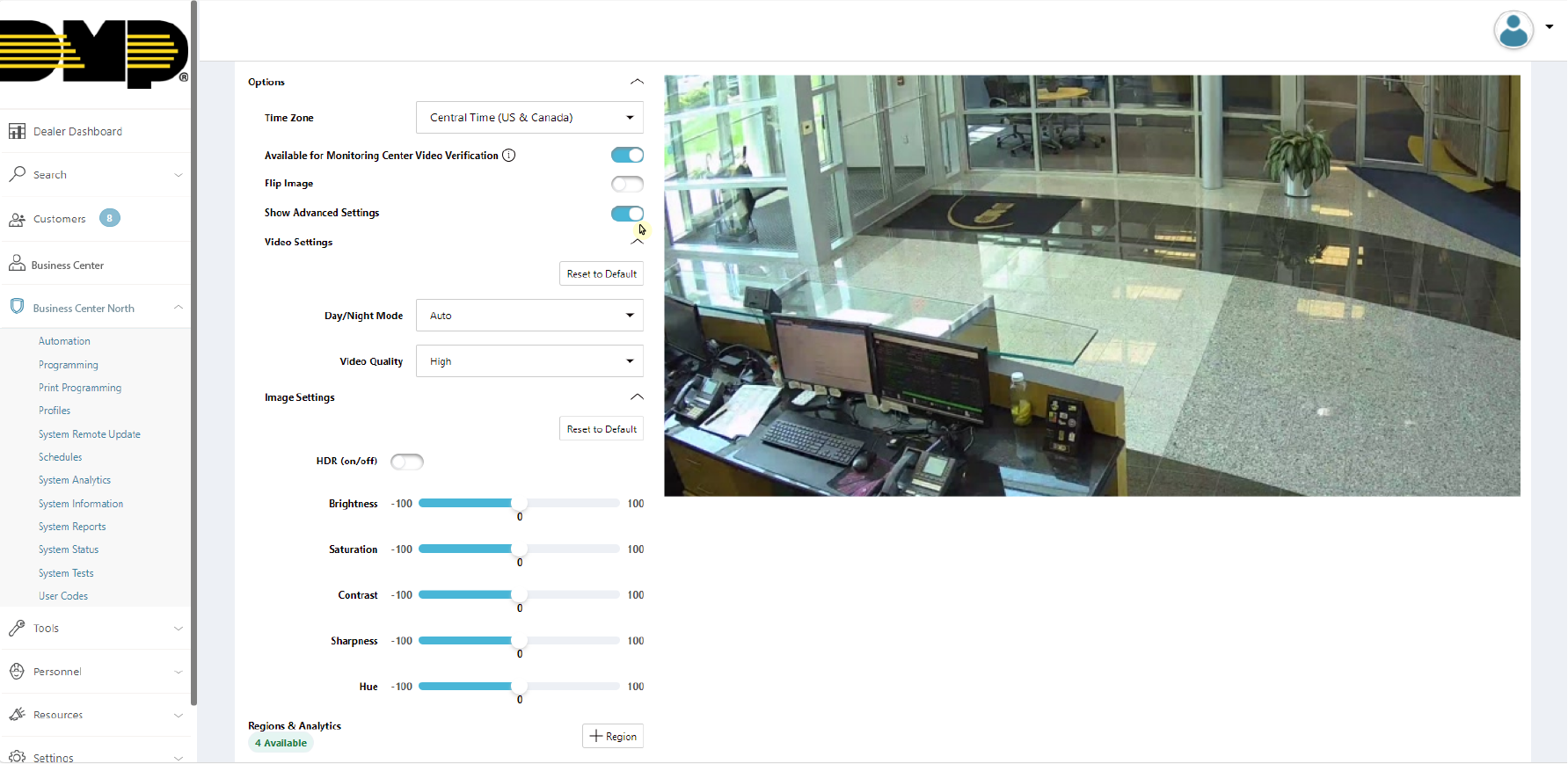

5. Click the Show Advanced Settings toggle to edit the following options:

   • Video Settings

     • Day/Night Mode

     • Video Quality

   • Image Settings

     • HDR (On/Off)

     • Brightness

     • Saturation

     • Contrast

     • Sharpness

     • Hue

   • Note: Click Reset to Default to restore Advanced Settings to DMP’s recommended settings.

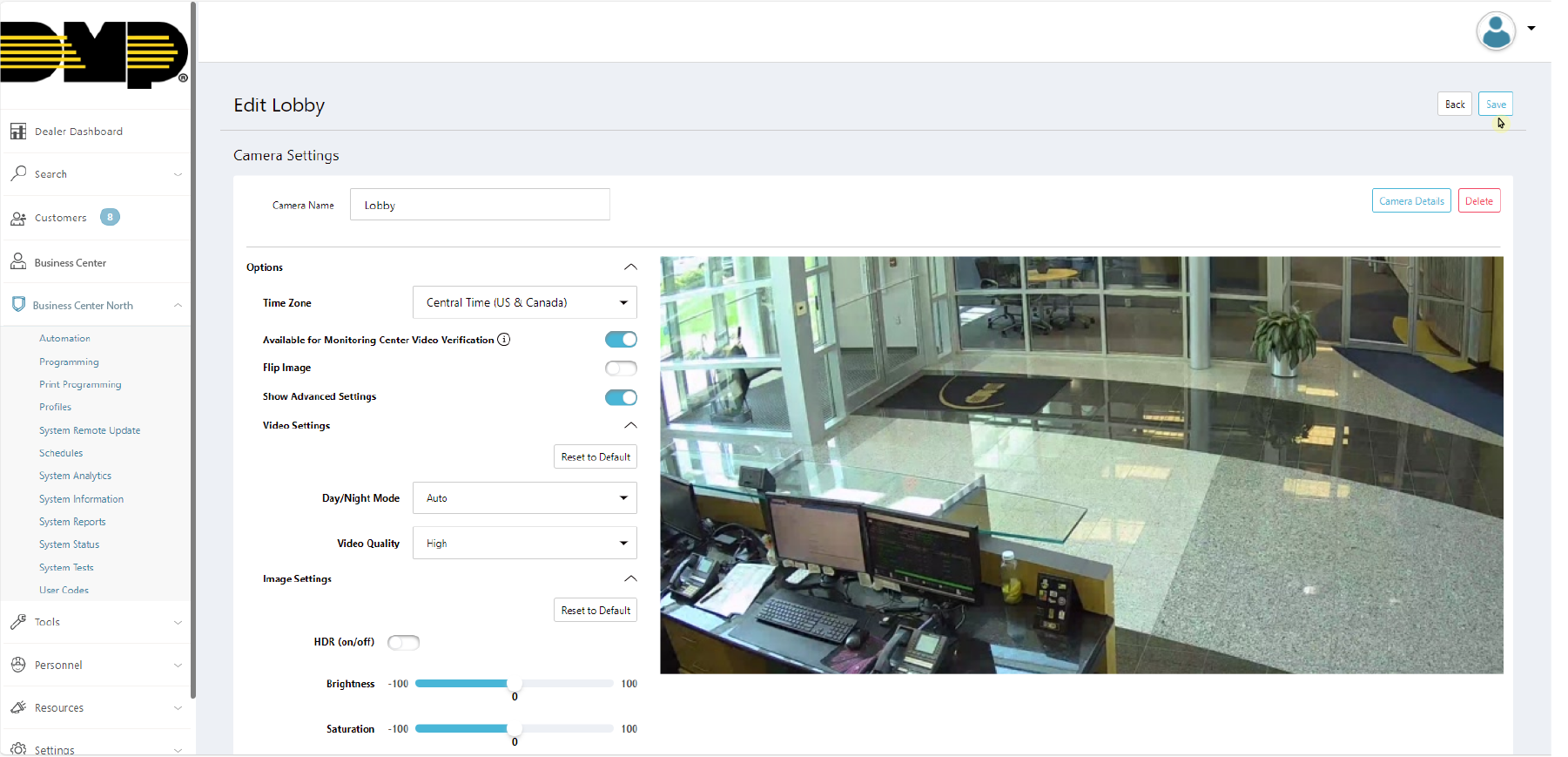

6. Click Save in the top right corner to apply any edits to the camera.

   • Note: Clicking Save will exit the Edit Camera page. Refer to the Configure Detection Regions and Alarm Zones section below to configure the camera before exiting the page.

Configure Detection Regions and Camera Alarm Zones

Create a Region

1. On the Edit Camera page, scroll down to Regions & Analytics and click + Region. A box will appear in the middle of the camera view screen. Click and drag the box on the camera’s field of view to define the desired detection region. Then, give the region a Name.

   • Note: Each camera can have up to four detection regions.

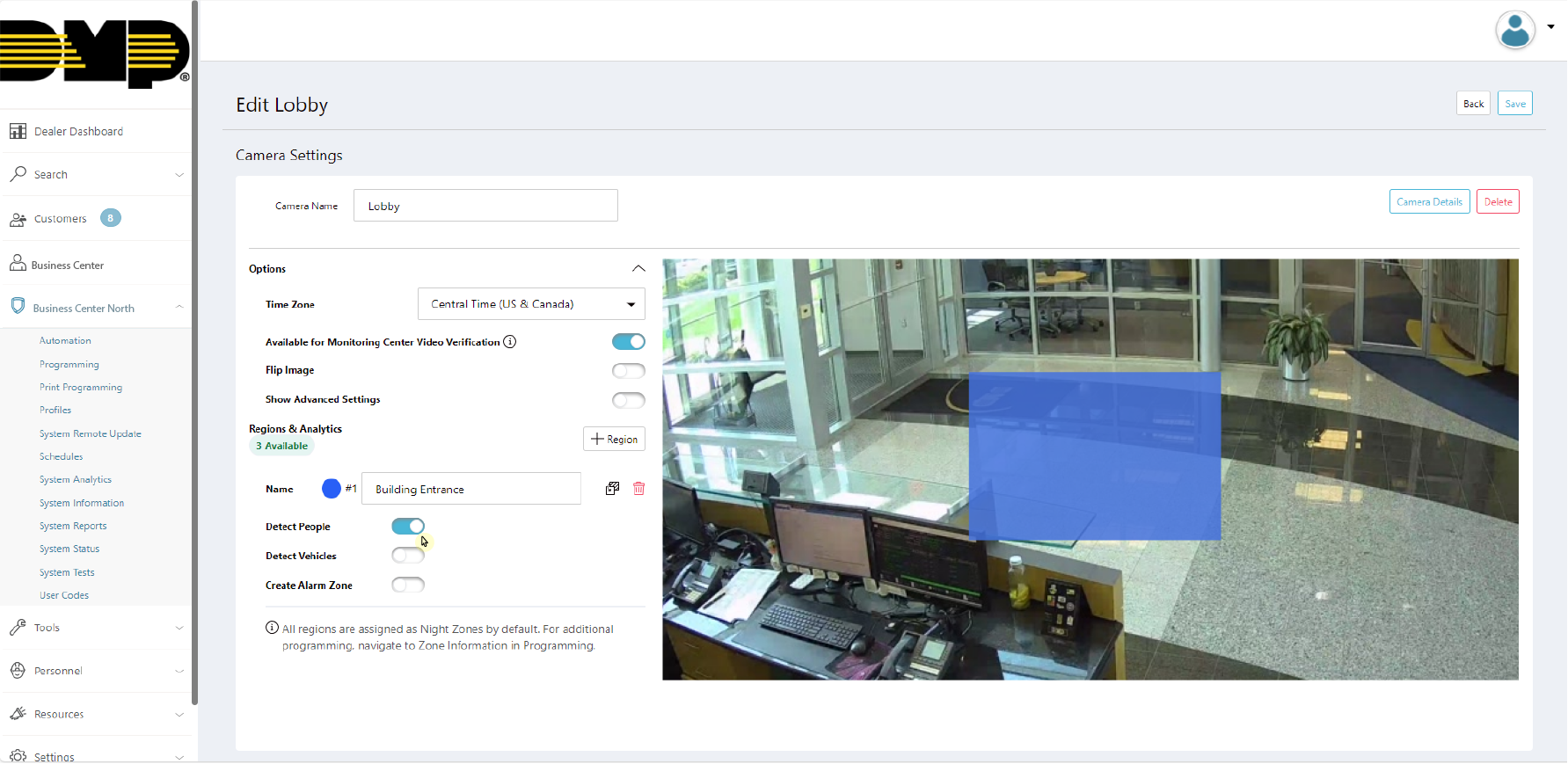

2. Select whether you want the region to detect People, Vehicles, or both.

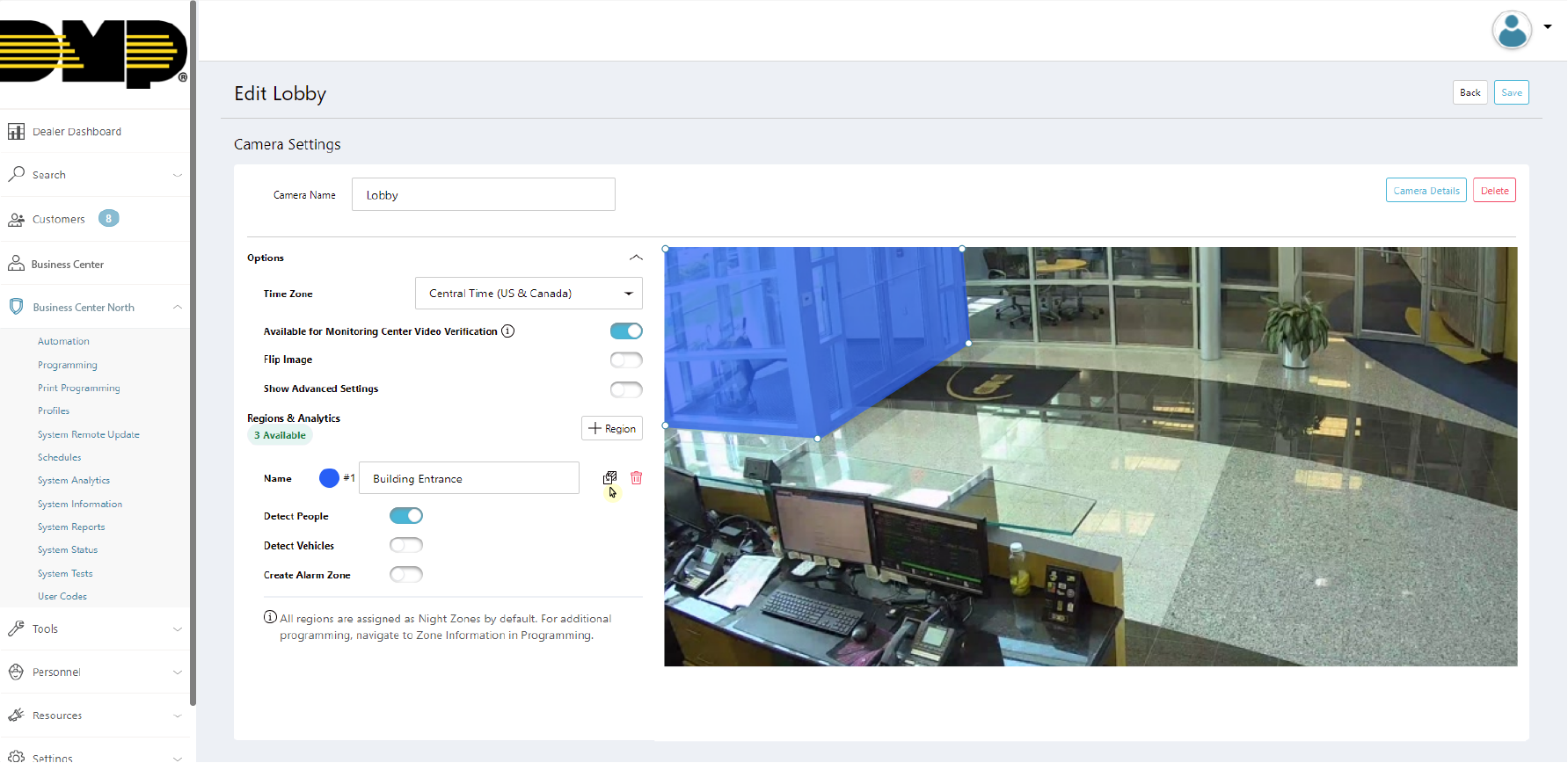

3. Click the boxes next to the name of the region. White circles will appear on the region box and can be used to manipulate the region by clicking and dragging them. You may also click anywhere on a line and a white circle will appear that allows the manipulation of the detection region.

Add a Zone

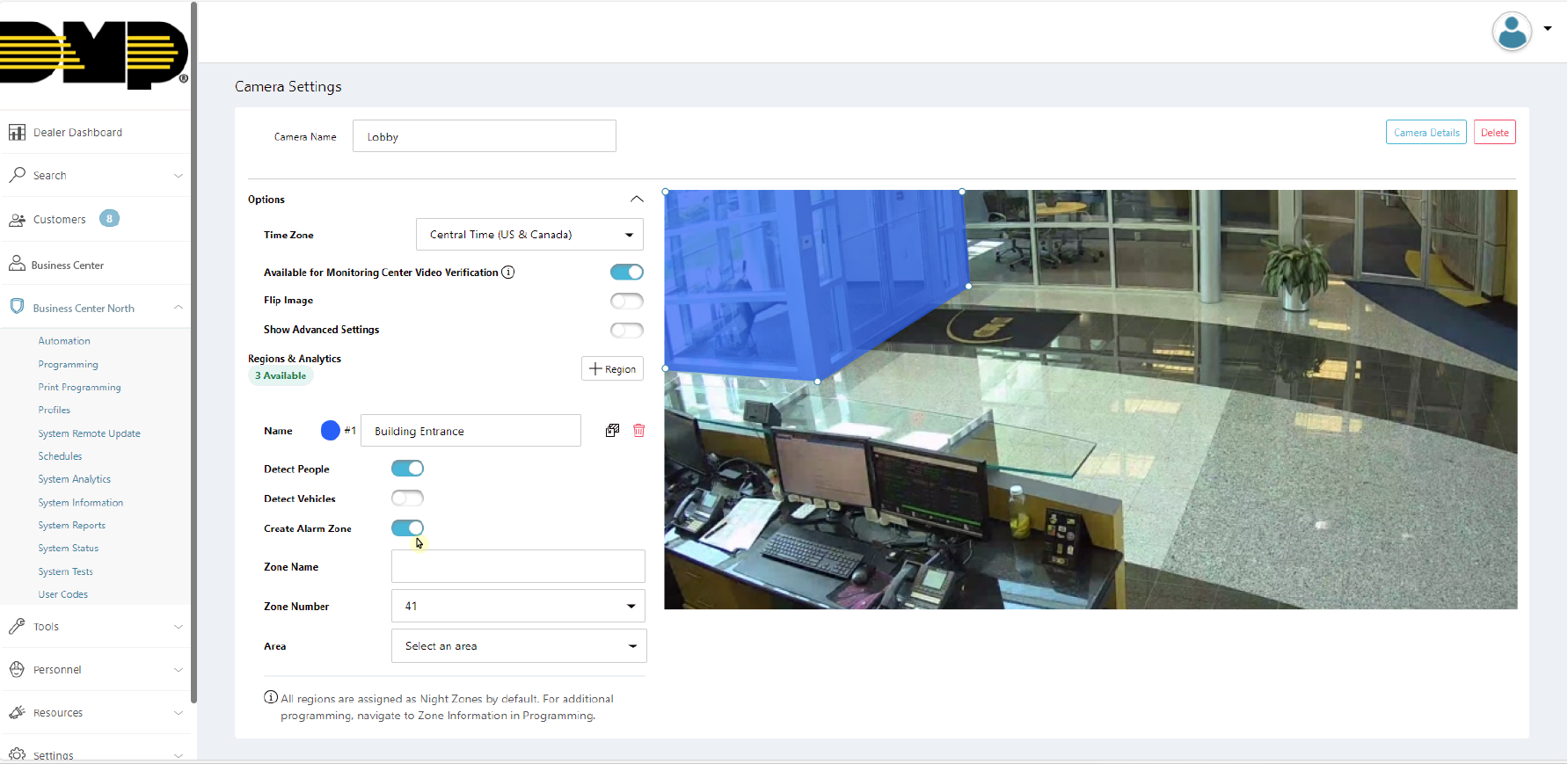

1. To tie a detection region to a panel zone, click the Create Alarm Zone toggle. This will expand into customizable zone options.

   • Note: If any camera detection region is tied to a panel zone, then all detections for that camera will only record when the zone is active.

2. Give the zone a Name.

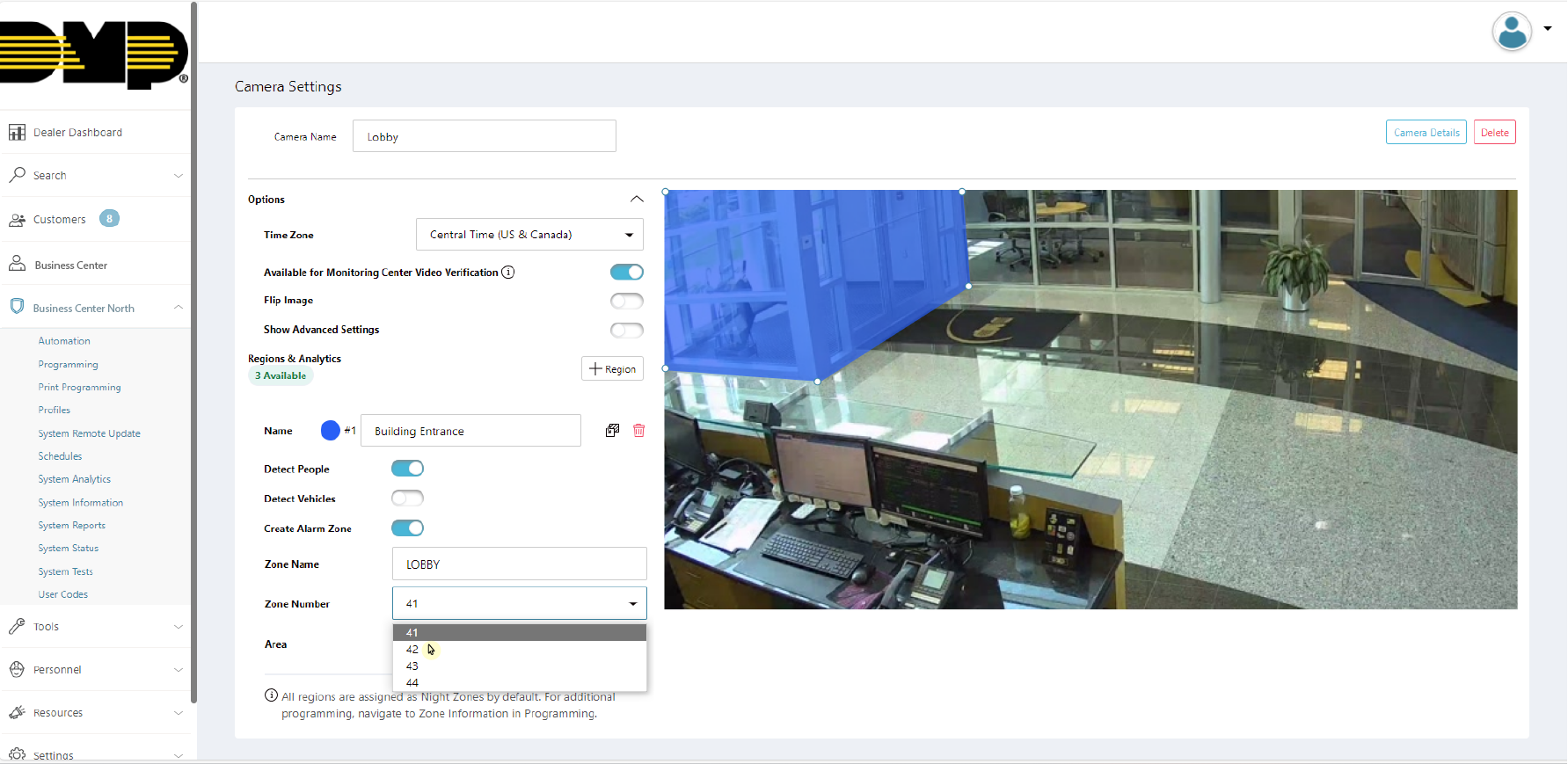

3. The zone number will automatically be populated with the next available zone number in the XR Series panel. You may assign a different zone number, if desired. Usable zones are LX500-999.

   • Note: Zones cannot be assigned to an AX-Bus.

4. Assign the zone to an Area by selecting the drop-down menu.

5. To add additional detection regions, repeat steps 1-4. Up to four detection regions can be placed on a camera.

   • Note: All zones are programmed as a Night Zone by default. To edit zone programming, refer to the Edit a Zone section below.

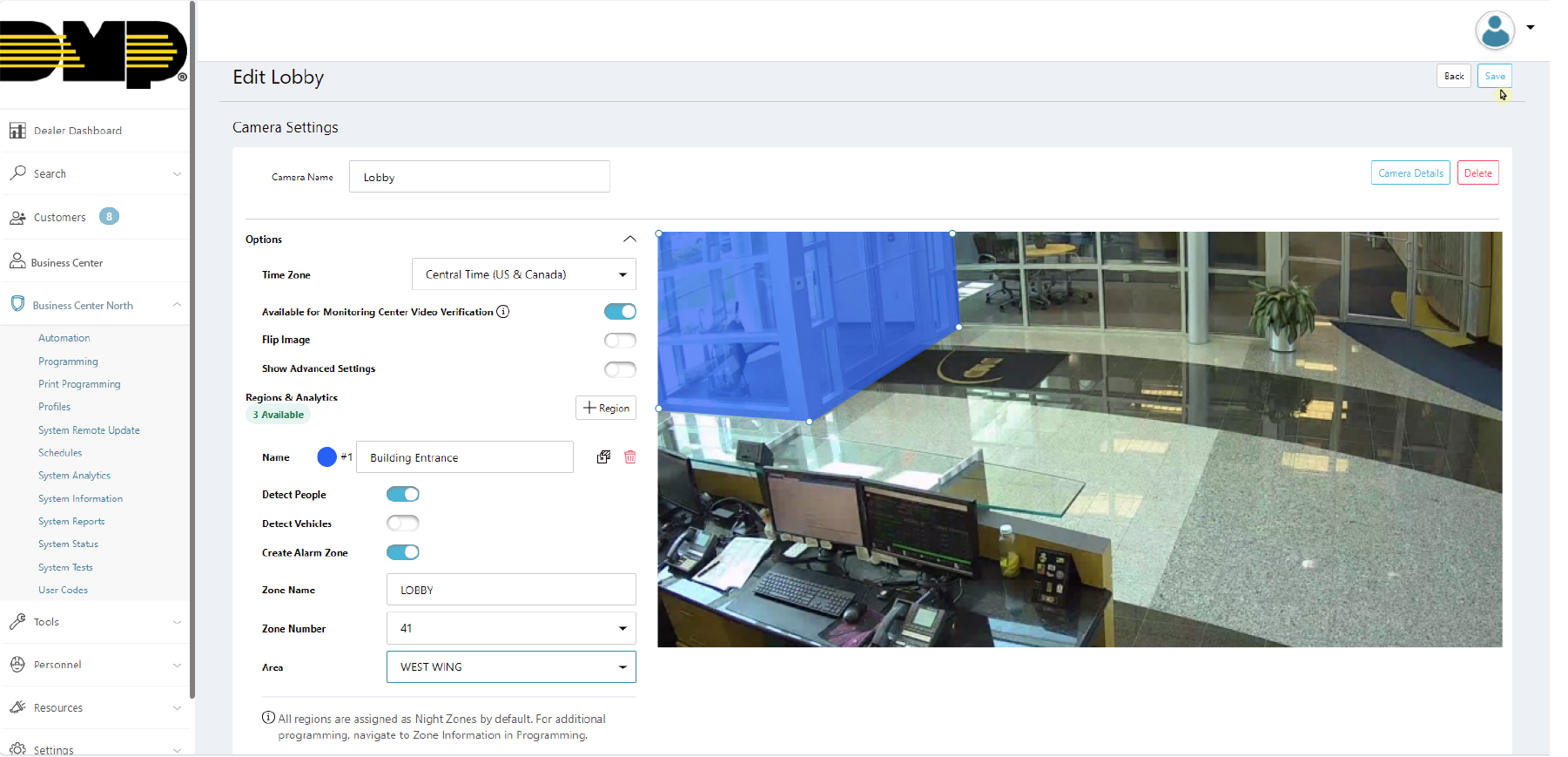

6. Click Save to apply changes and exit the Edit Camera page. This saves the detection regions and any zones tied to them as well as any camera adjustments made previously.

To configure end user settings, refer to Virtual Keypad Setup for more information.

Additional Camera Information

Edit a Device

To edit a device, navigate to Programming for the selected system.

1. Navigate to Device Setup and locate the camera device that needs to be edited.

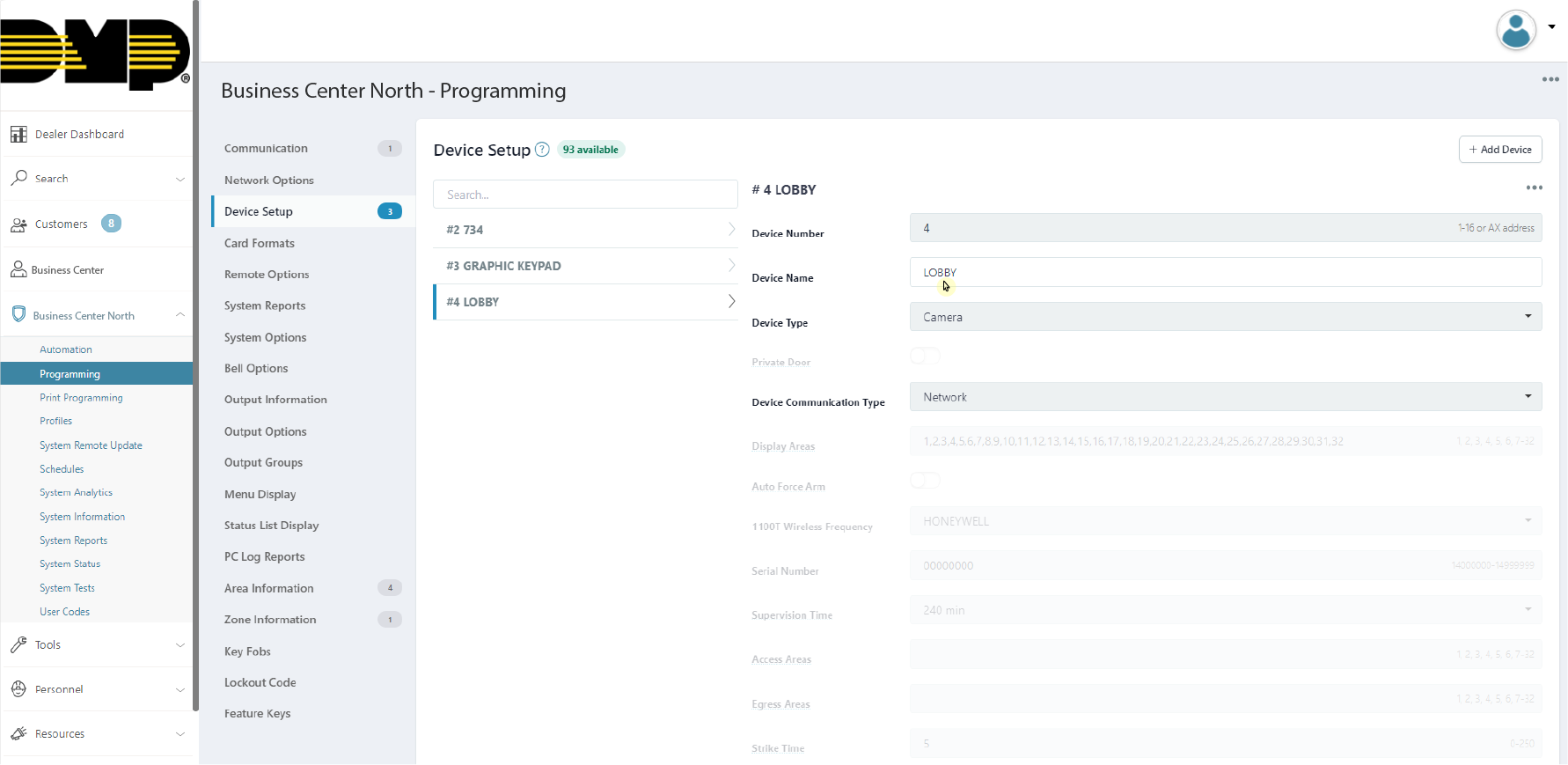

2. Select the Device Name box and type in a new name for the camera device.

3. When done editing, select Send All Changes in the top right corner of the screen to save the changes and send them to the panel.

Edit a Zone

To edit a zone, navigate to Programming for the selected system.

1. Navigate to Zone Information and locate the zone that needs to be edited.

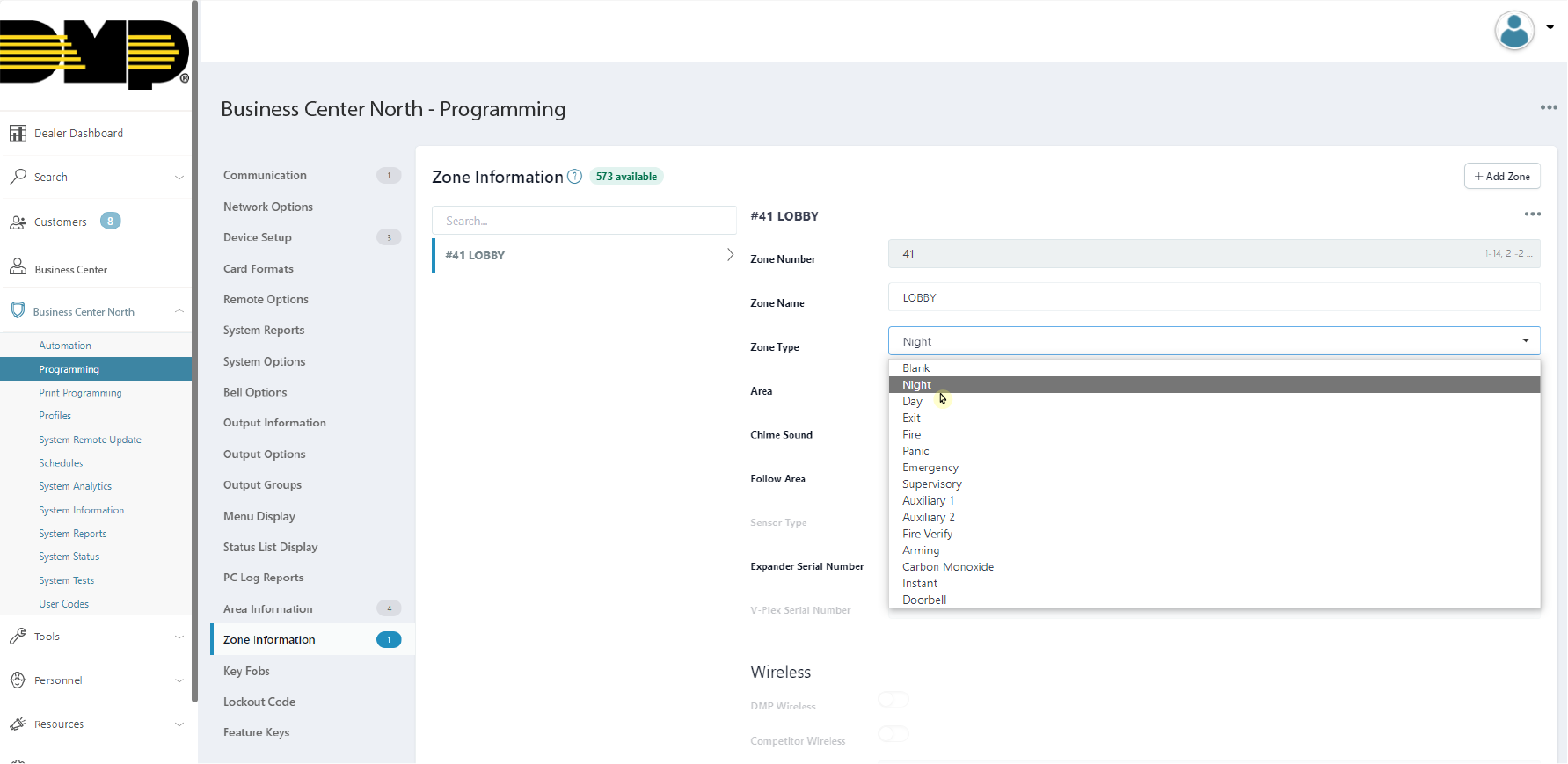

2. Select the drop-down menu next to Zone Type. This displays the zone types that can be assigned.

3. Select the drop-down menu next to Zone Actions. This displays the outputs that can be assigned.

4. When done editing, select Send All Changes in the top right corner of the screen to save the changes and send them to the panel.

Delete a Detection Region and Zone

To delete a detection region and a zone tied to it, navigate to System Information for the selected system.

• Note: Zones should NOT be deleted from Zone Information. If you attempt to delete a zone this way, a message appears explaining that the panel’s detection region will not properly communicate with the panel.

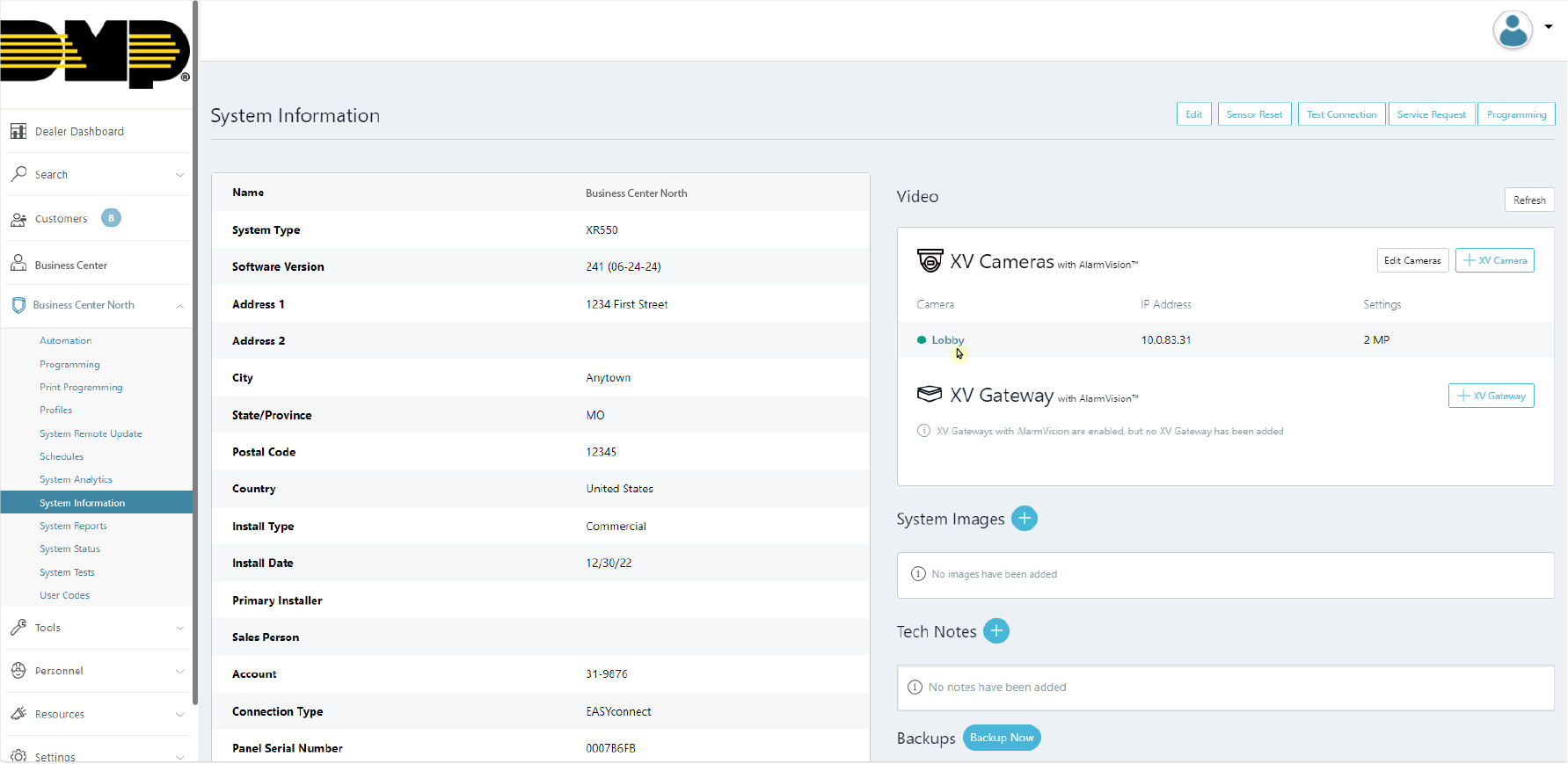

1. Select the camera that is tied to the detection region.

2. Click the Trash Can icon next to the name of the detection region.

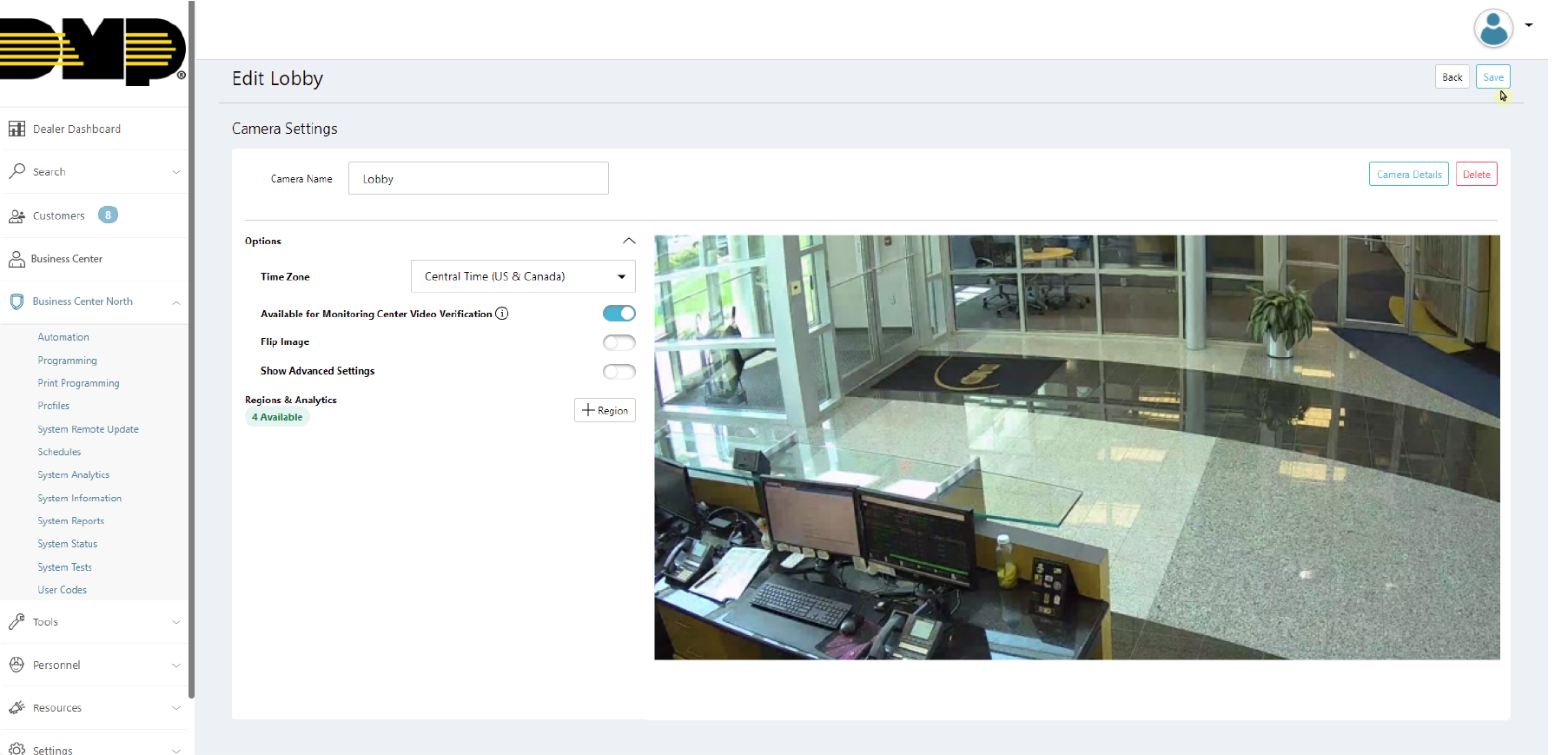

3. Click Save. This deletes the detection region and any zone tied to it.

Delete a Camera

To delete a camera, navigate to System Information for the selected system.

1. Select the camera that you want to delete.

2. Click Delete in the top right corner to remove the camera from the system.

   • Note: Deleting a camera will delete all detection regions and zones tied to the camera.

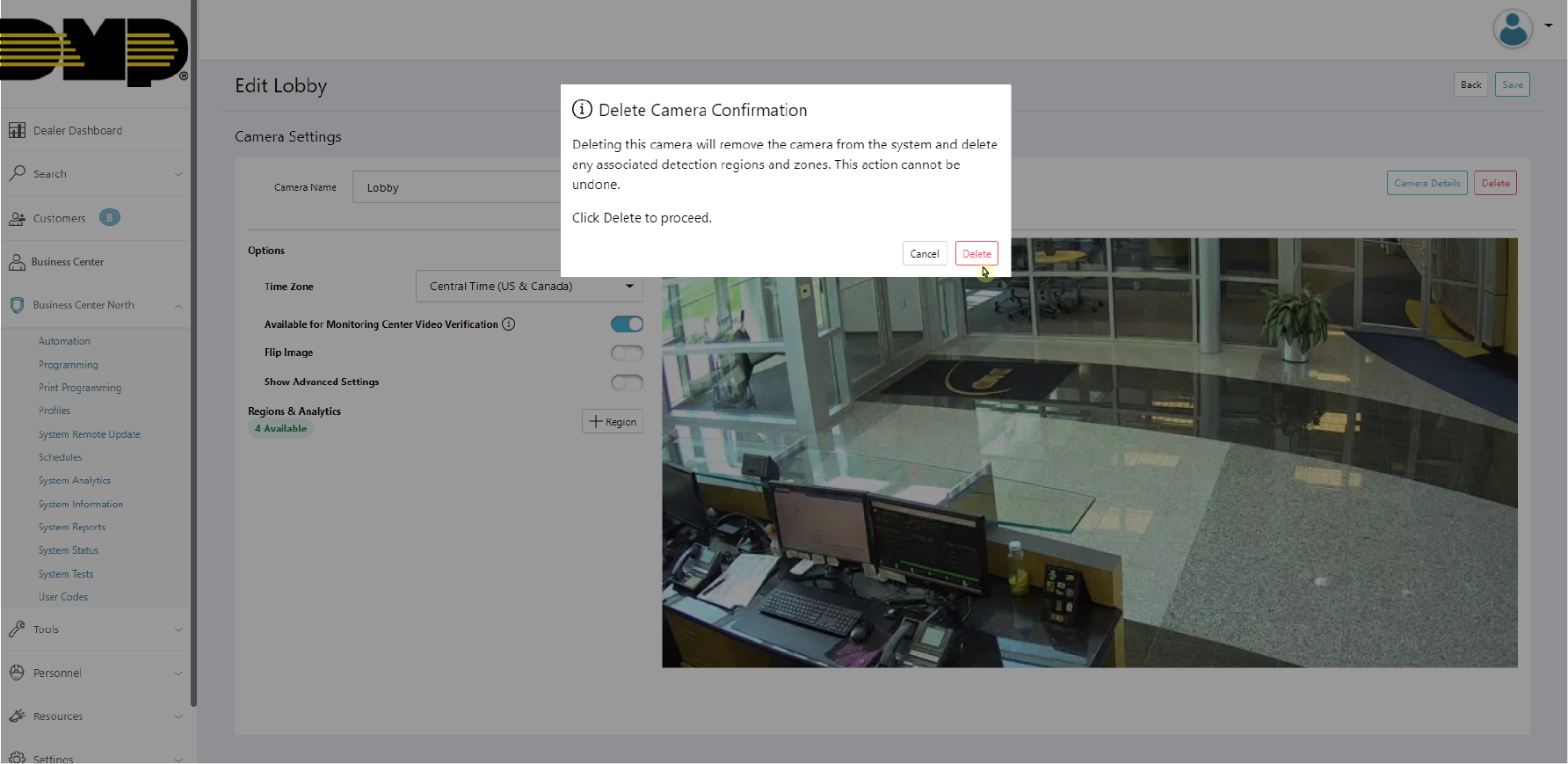

3. Click Delete in the pop-up window to confirm that you want to delete the camera.

Ordering Information

Camera Models

XV-CUBE-1: 2MP Wi-Fi Cube Camera

XV-CUBE-1-CAN: 2MP Wi-Fi Cube Camera Canadian

Accessories

V-12V-PS: Camera 12V 2A Plug In Power Supply

Specifications

FCC Information

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC ID:
XV-CUBE-1: CCKXC2CW

Industry Canada Information

IC Caution: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference,

2. This device must accept any interference, including interference that may cause undesired operation of the device.

This Class [B] digital apparatus complies with Canadian ICES-003.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:

1. l’appareil ne doit pas produire de brouillage, et

2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
L’appareil a été évalué pour répondre aux exigences générales d’exposition RF.
L’appareil peut être utilisé dans des conditions d’exposition fixes / mobiles.

Caution:
Operating Frequency Range band 5150-5250 MHz “for indoor use only.”
