Dome Camera Installation and Setup (XV-DOME-1) TEST

Camera Overview

XV Dome Cameras with AlarmVision™ are indoor/outdoor video cameras that integrate with the XR Series™ Panel and feature on-edge analytics, including person and vehicle detection.

Virtual Keypad users can view live and recorded HD video clips, define video actions, and receive push notifications of real events in real time for real results.

You will need an active Dealer Admin account at dealer.securecomwireless.com to activate the camera.

Note: Ensure the XR Series Panel is updated to Version 241 or higher.

What’s Included

• XV Dome Camera

• Weatherproofing Hardware Pack

• Mounting Hardware Pack

• Torx Key

• XV Camera Quick Start Guide

What You’ll Need

• Phillips Screwdriver

• 3/16” Drill Bit

• DMP Model V-12V-PS Plug In Power Supply (Optional, Standard Power Connection)

Pre-Installation

Prior to mounting the camera, activate the camera in Dealer Admin.

The camera does not need to be removed from the box for bench setup. Open the box to expose the cable connection ends and begin the onboarding process. To avoid overheating during bench setup, do not leave the camera powered on for more than 2 hours continuously while inside packaging.

Power the Camera

Outdoor Installation

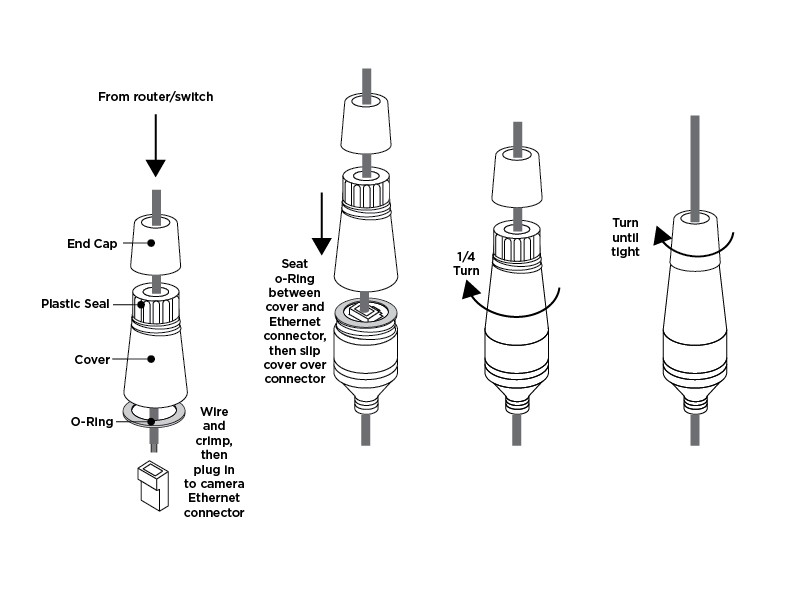

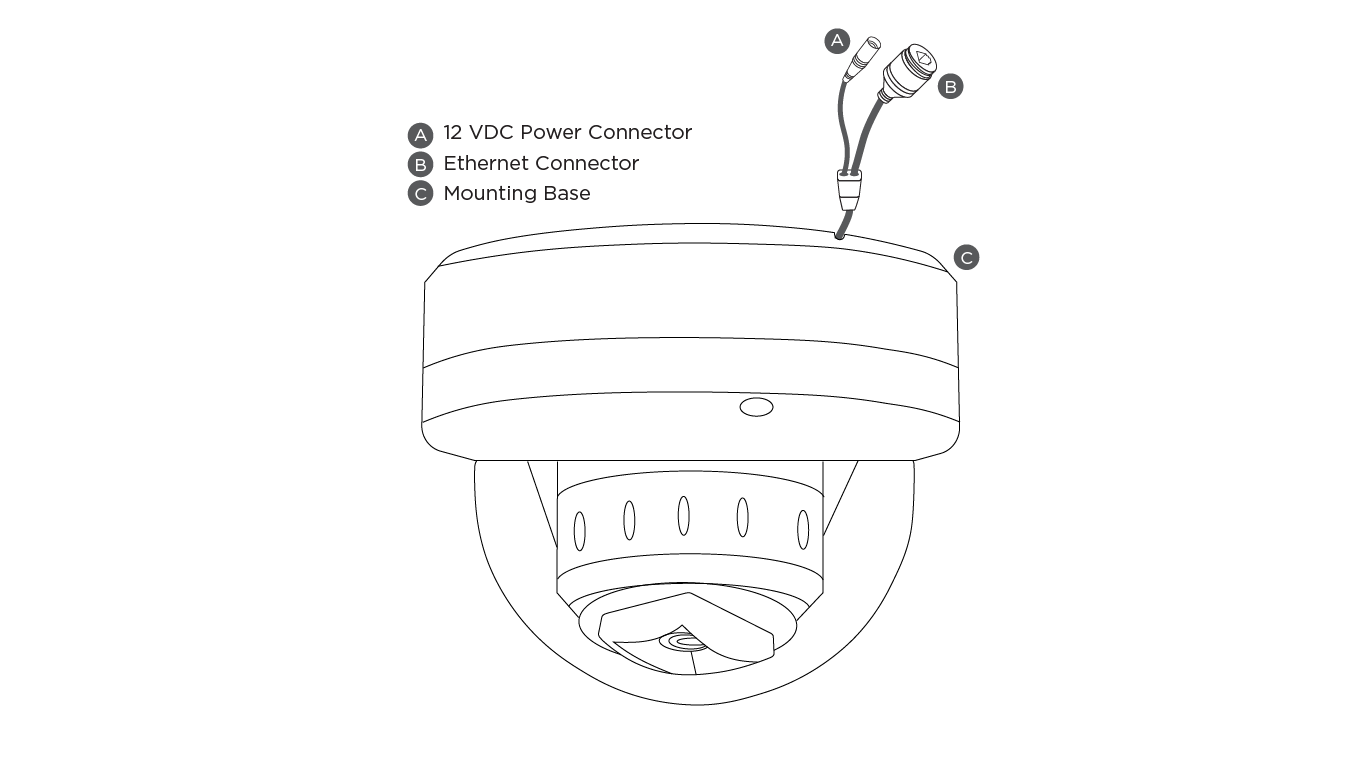

1. Slide the End Cap onto the Ethernet cable.

2. Attach the Plastic Seal to the Ethernet cable.

3. Slide the Cover onto the Ethernet cable and over the Plastic Seal.

4. Place the O-Ring around the camera Ethernet connector.

5. Connect the Ethernet cable to the camera Ethernet connector (Cat 5E or above).

6. Screw the Cover to the camera Ethernet connector with the O-Ring in between to lock into place.

7. Screw the End Cap and Cover together until tight.

8. Wrap tape around the Ethernet cable to secure the weatherproofing.

9. Connect the Ethernet cable to a Power over Ethernet (PoE) switch or injector.

Indoor Installation

Option One: PoE Connection

Connect a network cable from the camera’s Ethernet connector (Cat 5E or above) to a Power over Ethernet (PoE) switch or injector.

Option Two: Standard Power Connection

Connect a DMP Model V-12V-PS Plug In Power Supply (not included) to the camera power connector.* Connect a network cable to the camera Ethernet connector.

*The camera requires a 1 Amp power supply.

Mount the Camera

Mount and Adjust the Camera

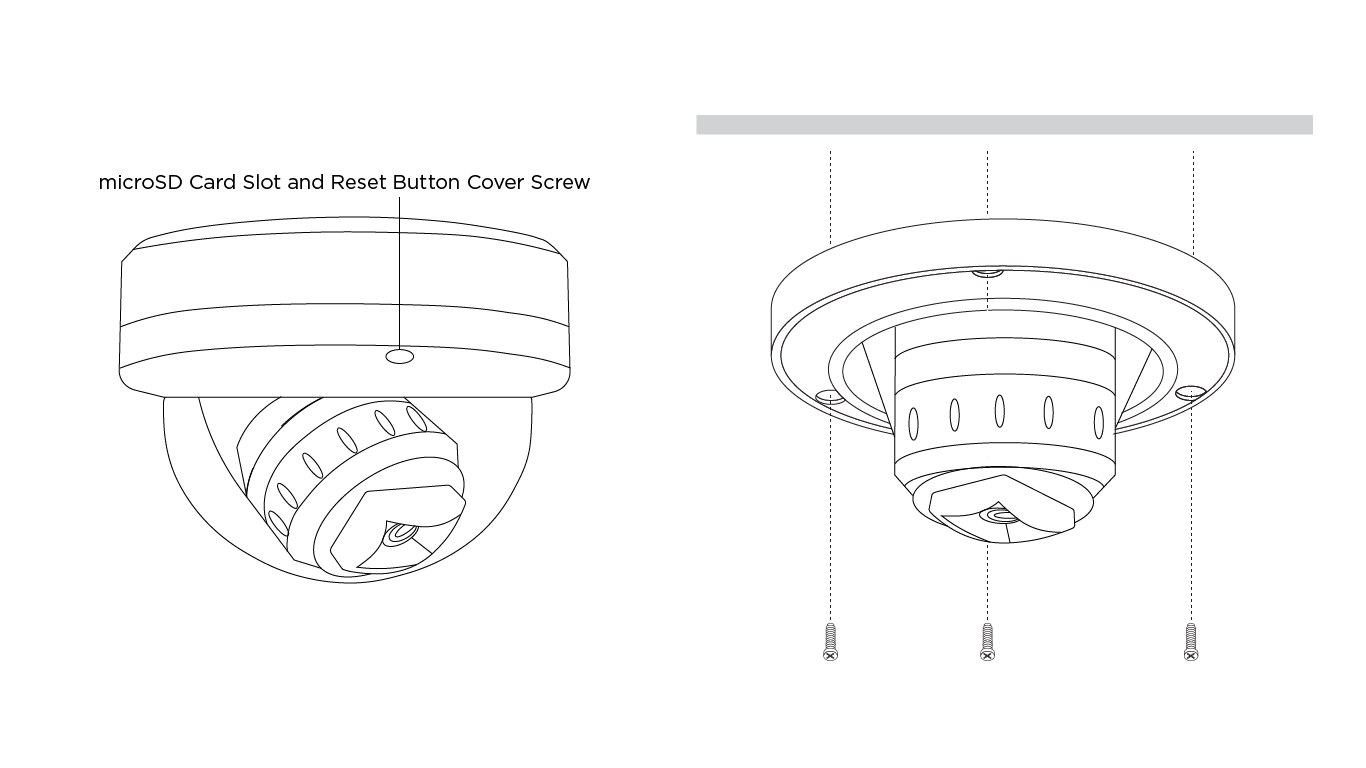

1. Stick or place the mounting template at the location you want to mount the camera. Ensure the mounting template is properly placed for cable management.

2. Drill holes into the mounting template and insert the wall anchors in the holes (optional).

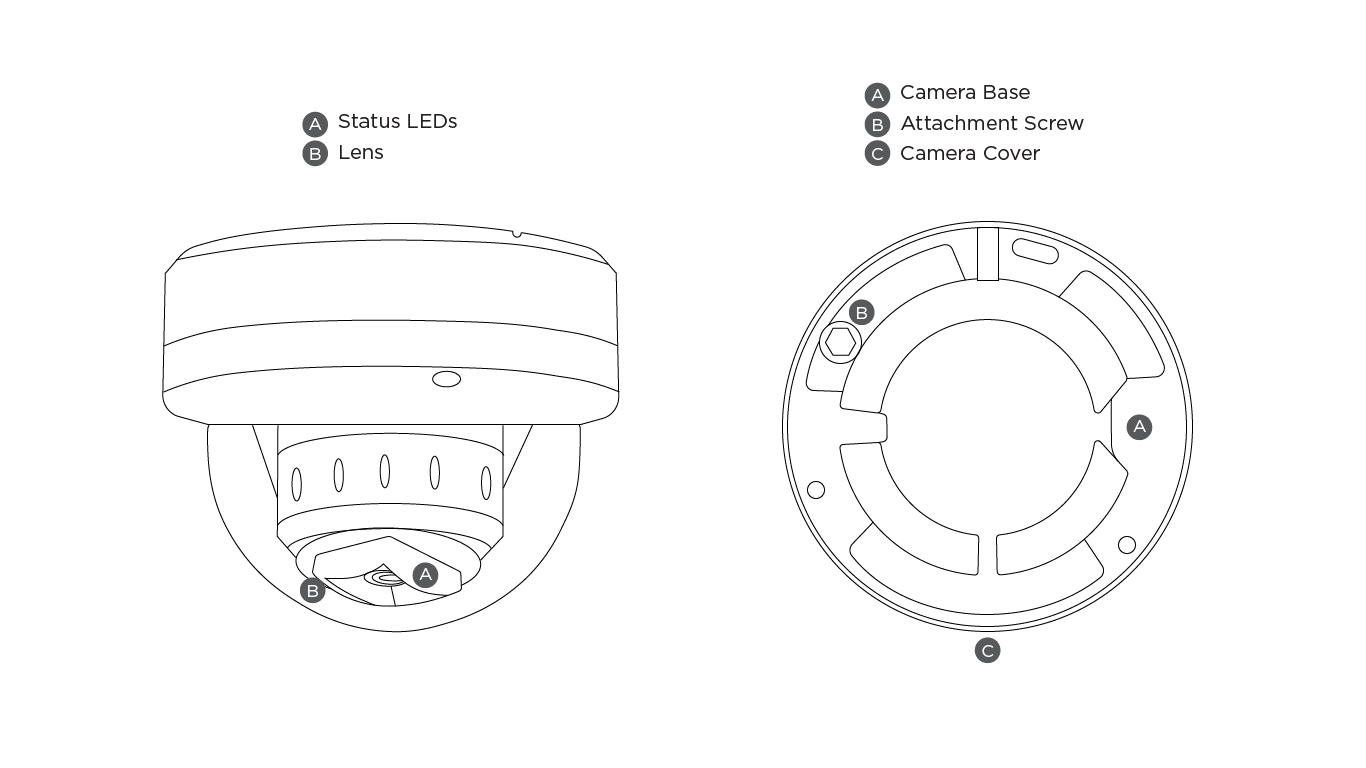

3. Use the included torx key to remove the camera’s cover.

4. Line up the camera base with the pre-drilled holes or wall anchors and use the included screws to mount the camera base.

5. Use the camera’s 3-axis gimbal to adjust the tilt, rotation, and pan as needed.

6. Use the included torx key to reattach the camera’s cover.

   • Note: The mounting surface should be capable of holding five times the camera’s weight.

Enable XV Series Cameras with AlarmVision™

1. Log into Dealer Admin.

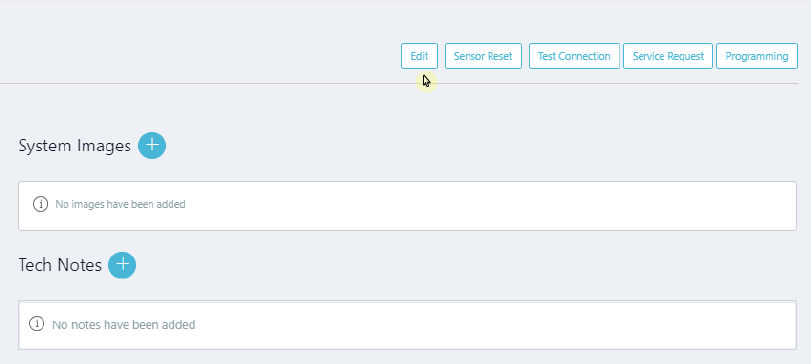

2. Find the customer and select the relevant system. In the top right corner of the System Information page, click Edit.

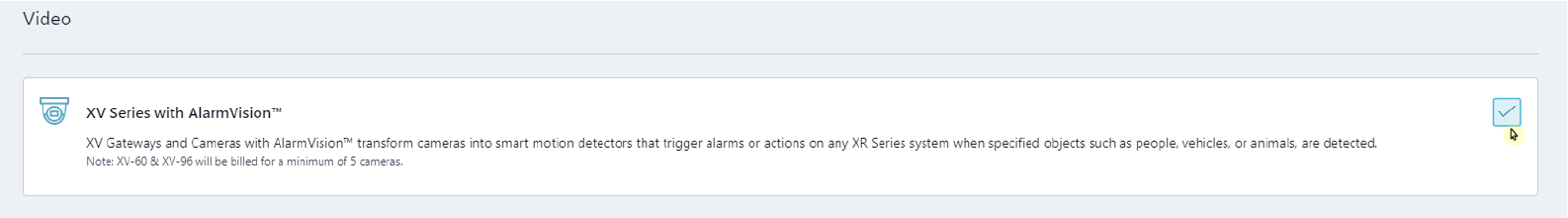

3. In Video, click the XV Series with AlarmVision™ checkbox, then click Save.

Add the Camera to System

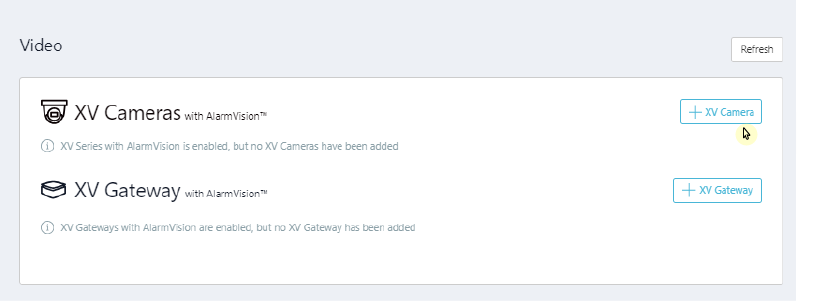

1. In the XV Series with AlarmVision™ section, click + XV Camera to add an XV Series camera.

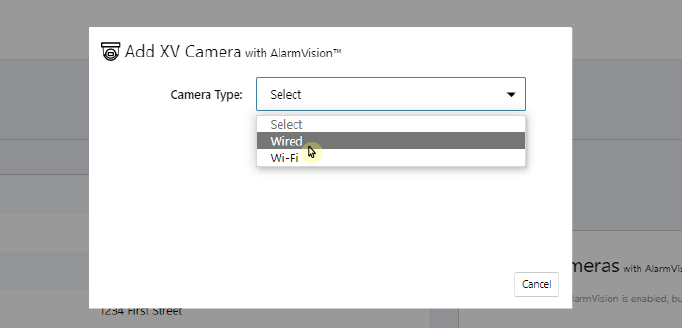

2. Select the Wired camera type.

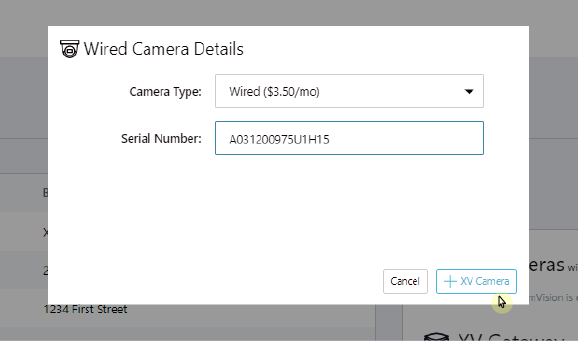

3. Add the camera Serial Number and click + XV Camera. You can find the camera serial number on the camera base or on the box the camera was shipped in.

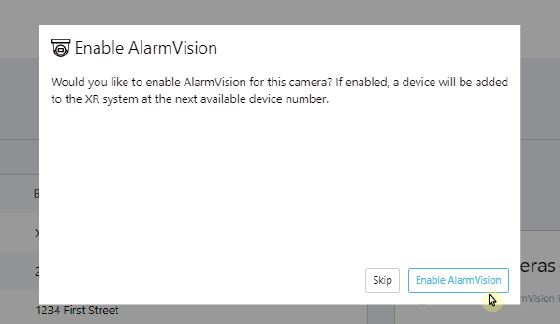

4. To add the camera as a Camera Device Type, click Enable AlarmVision.

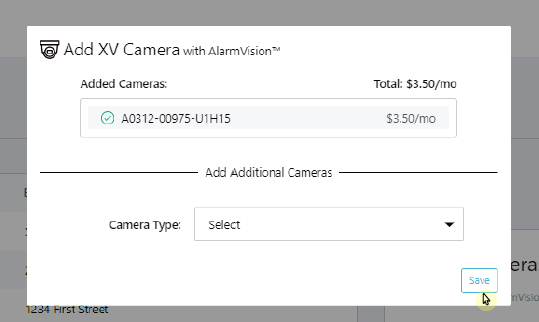

5. Dealer Admin will display a green checkmark to the left of the camera serial number once it has been successfully added. Repeat this process to add additional cameras or click Save.

To troubleshoot camera issues, refer to the Camera Status LED List for more information.

Edit the Camera

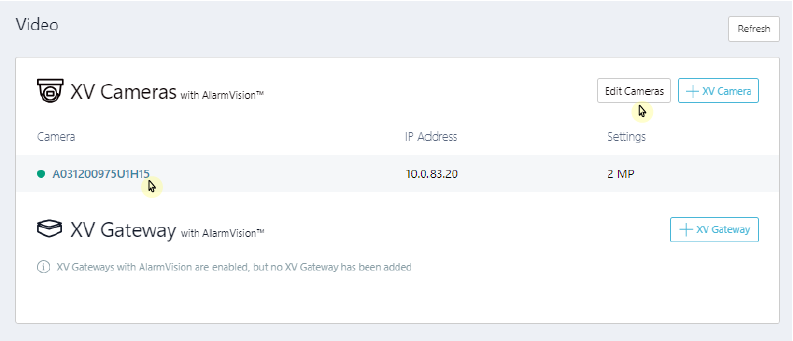

1. Select the camera(s) you want to edit.

   1. Edit multiple cameras by clicking Edit Cameras in the XV Series with AlarmVision™ section.

   2. Edit a single camera by clicking the camera name in the XV Series with AlarmVision™ section.

2. Enter a name for the camera.

   • Note: The camera name will default to the camera serial number.

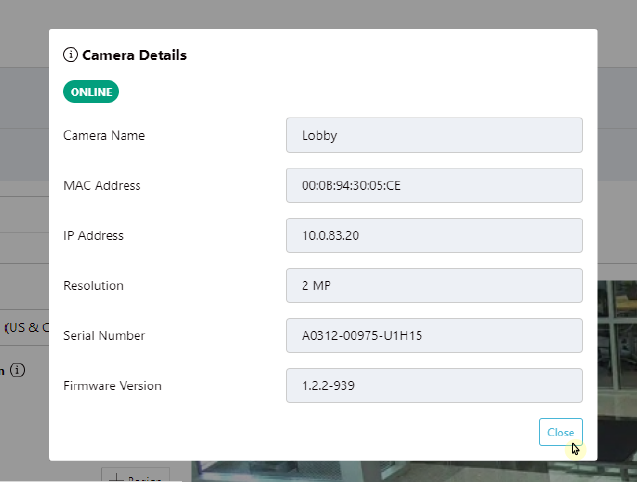

3. Click the Camera Details button in the top right corner to view the following camera information:

   • Camera Connection Status

   • Camera Name

   • MAC Address

   • IP Address

   • Resolution

   • Serial Number

   • Firmware Version

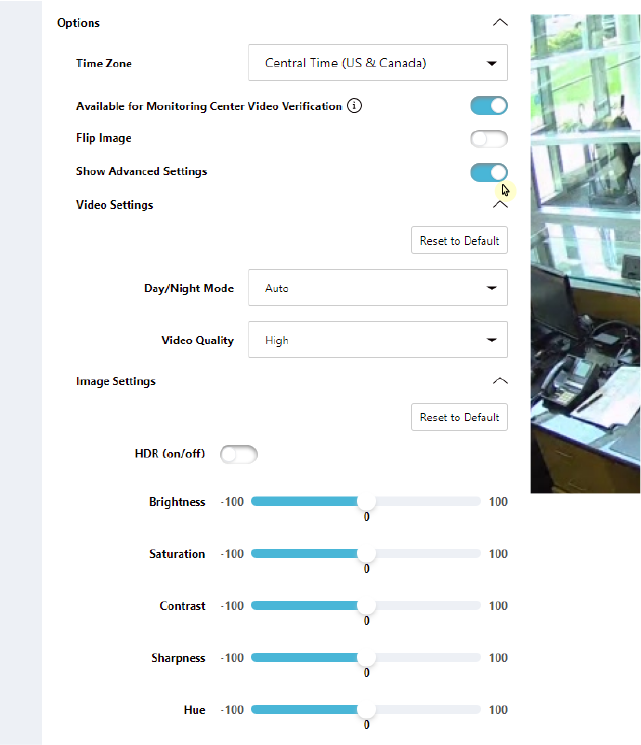

4. In Options, enable the following options:

   • Available for Monitoring Center Video Verification (if enabled for the system)

   • Flip Image (0, 180 degrees)

   • Show Advanced Settings

5. Click the Show Advanced Settings toggle to edit the following options:

   • Video Settings

     • Day/Night Mode

     • Video Quality

   • Image Settings

     • HDR (On/Off)

     • Brightness

     • Saturation

     • Contrast

     • Sharpness

     • Hue

   • Note: Click Reset to Default to restore Advanced Settings to DMP’s recommended settings.

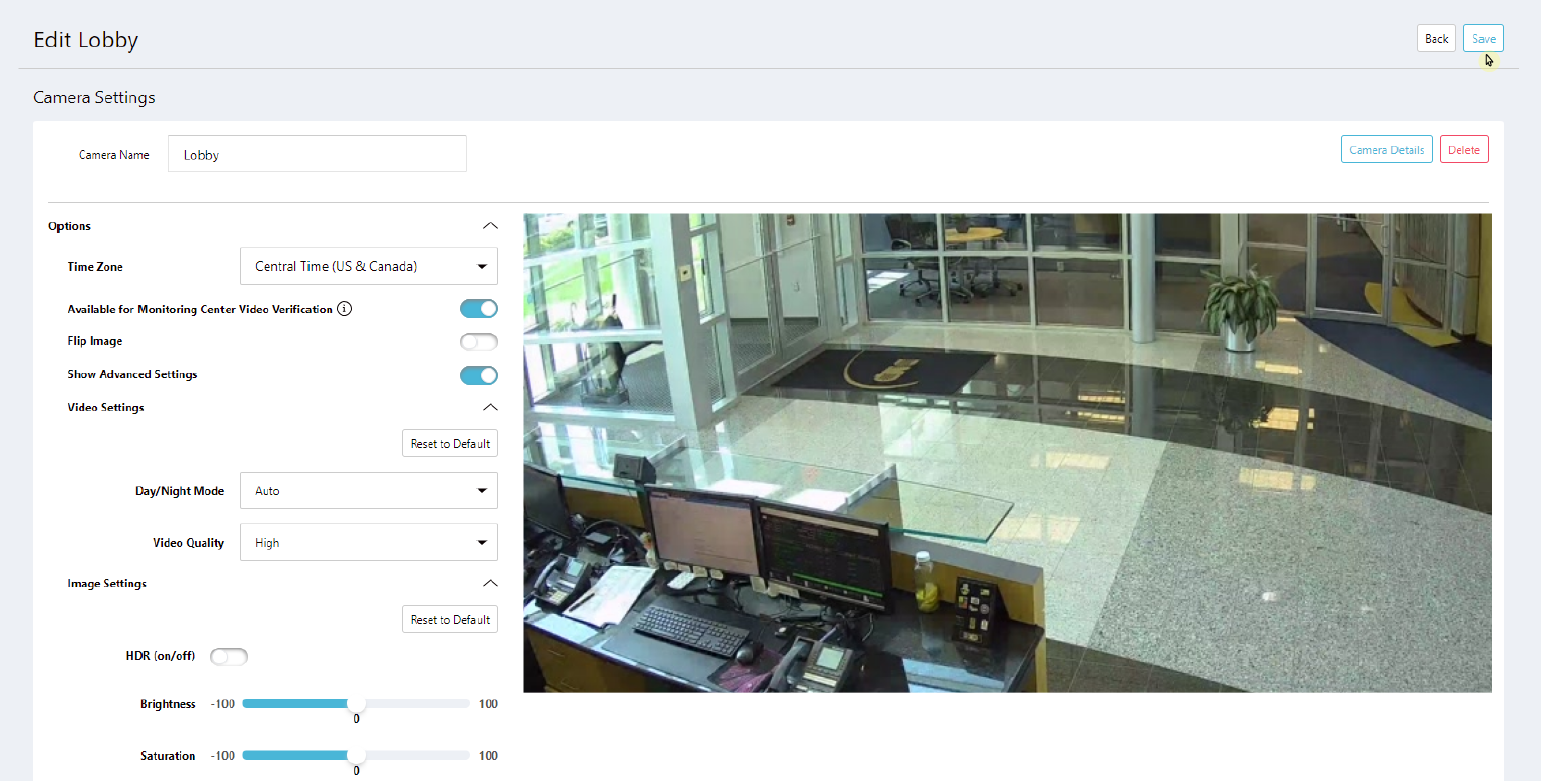

6. Click Save in the top right corner to apply any edits to the camera.

   • Note: Clicking Save will exit the Edit Camera page. Refer to the Configure Detection Regions and Alarm Zones section below to configure the camera before exiting the page.

Configure Detection Regions and Camera Alarm Zones

Create a Region

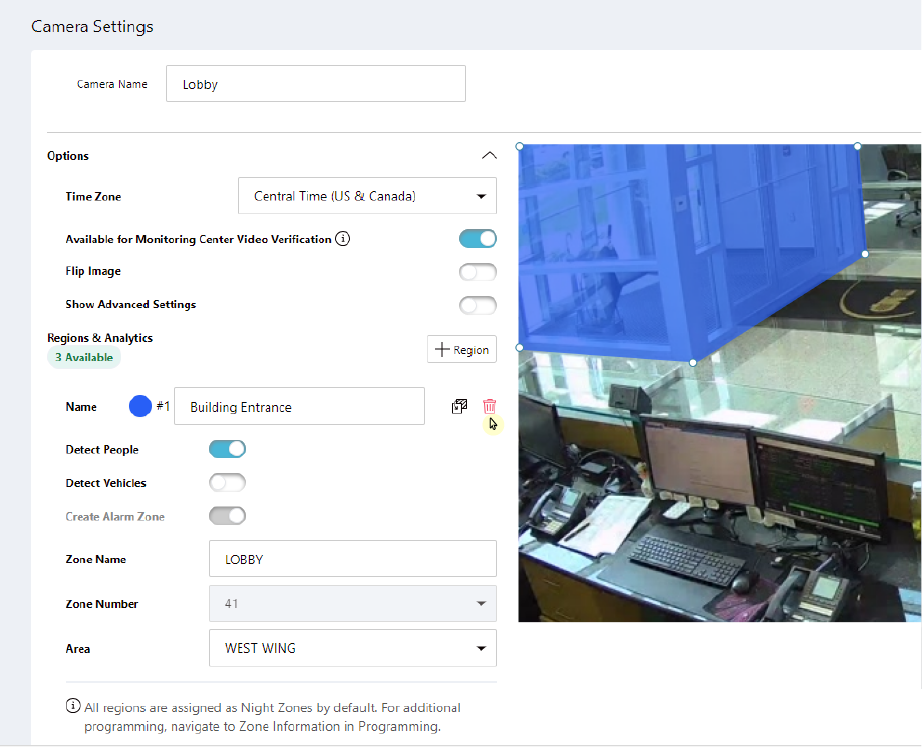

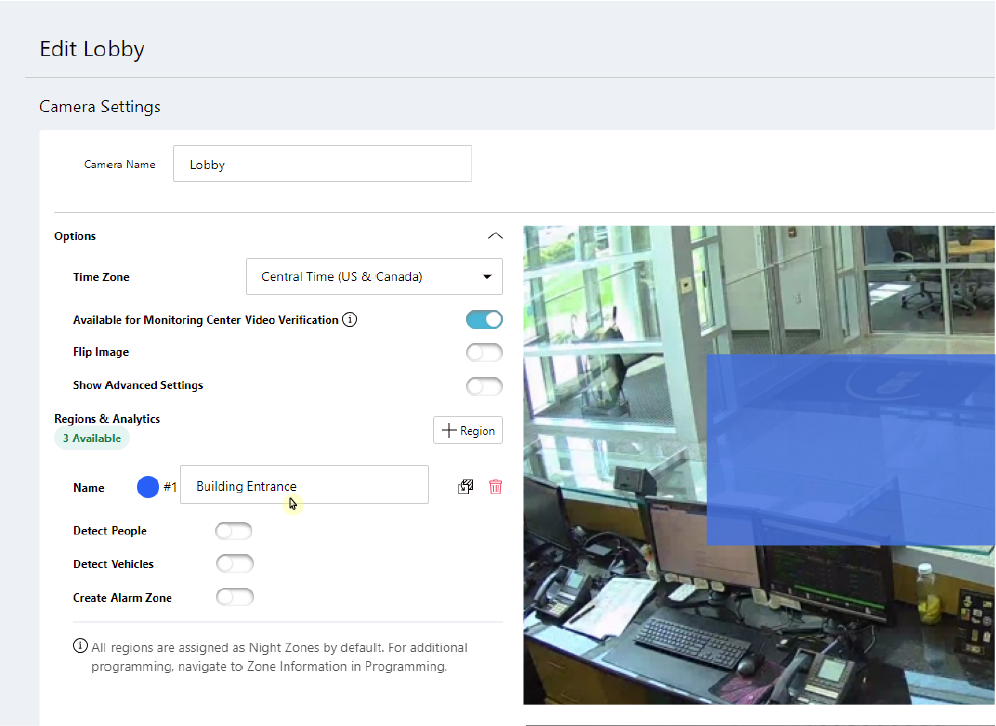

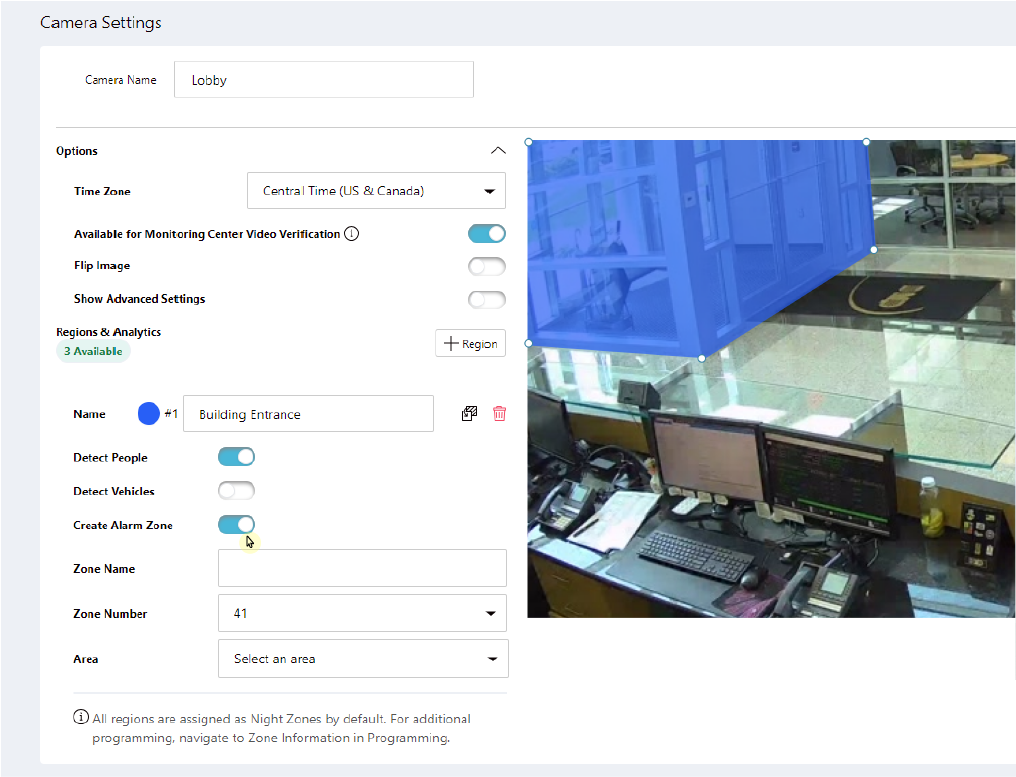

1. On the Edit Camera page, scroll down to Regions & Analytics and click + Region. A box will appear in the middle of the camera view screen. Click and drag the box on the camera’s field of view to define the desired detection region. Then, give the region a Name.

   • Note: Each camera can have up to four detection regions.

2. Select whether you want the region to detect People, Vehicles, or both.

3. Click the boxes next to the name of the region. White circles will appear on the region box and can be used to manipulate the region by clicking and dragging them. You may also click anywhere on a line and a white circle will appear that allows the manipulation of the detection region.

Add a Zone

1. To tie a detection region to a panel zone, click the Create Alarm Zone toggle. This will expand into customizable zone options.

   • Note: If any camera detection region is tied to a panel zone, then all detections for that camera will only record when the zone is active.

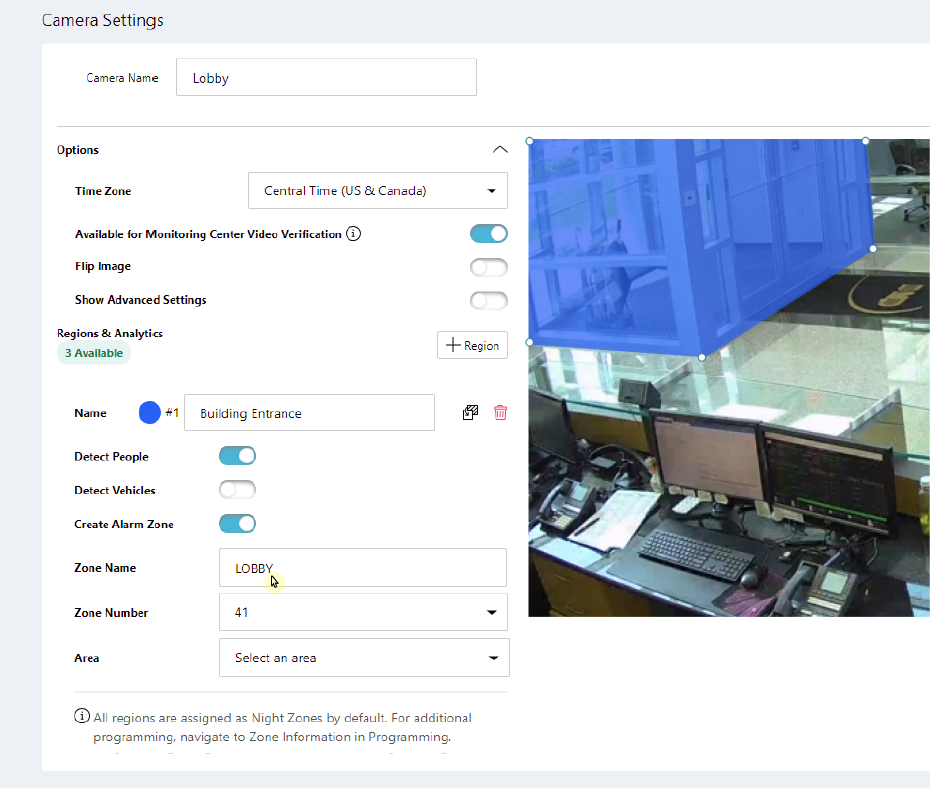

2. Give the zone a Name.

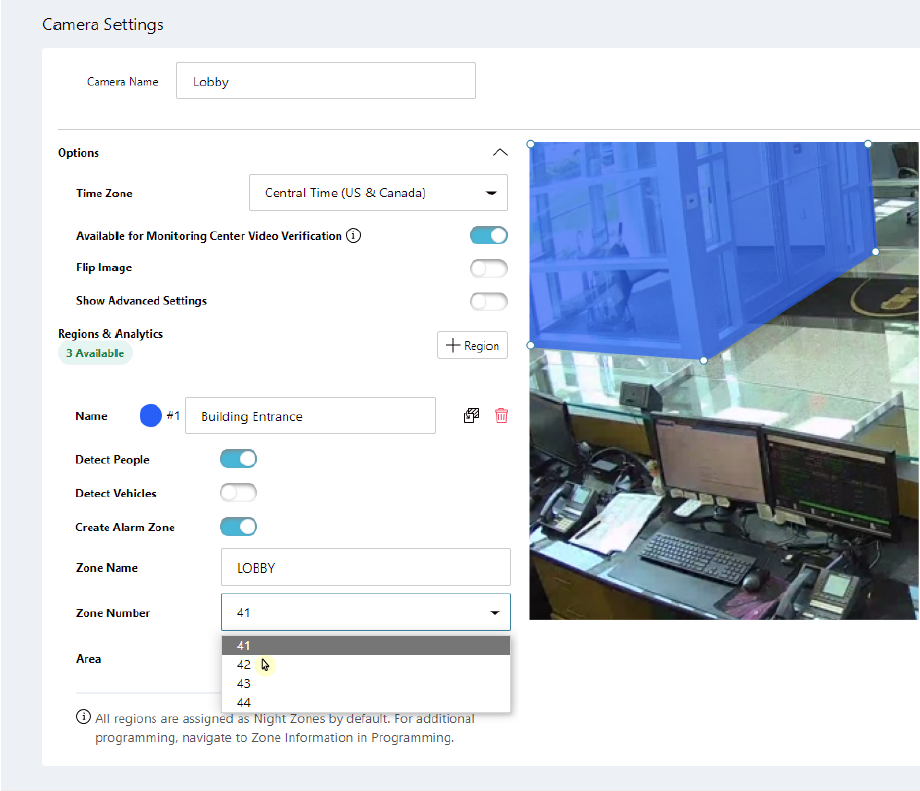

3. The zone number will automatically be populated with the next available zone number in the XR Series panel. You may assign a different zone number, if desired. Usable zones are LX500-999.

   • Note: Zones cannot be assigned to an AX-Bus.

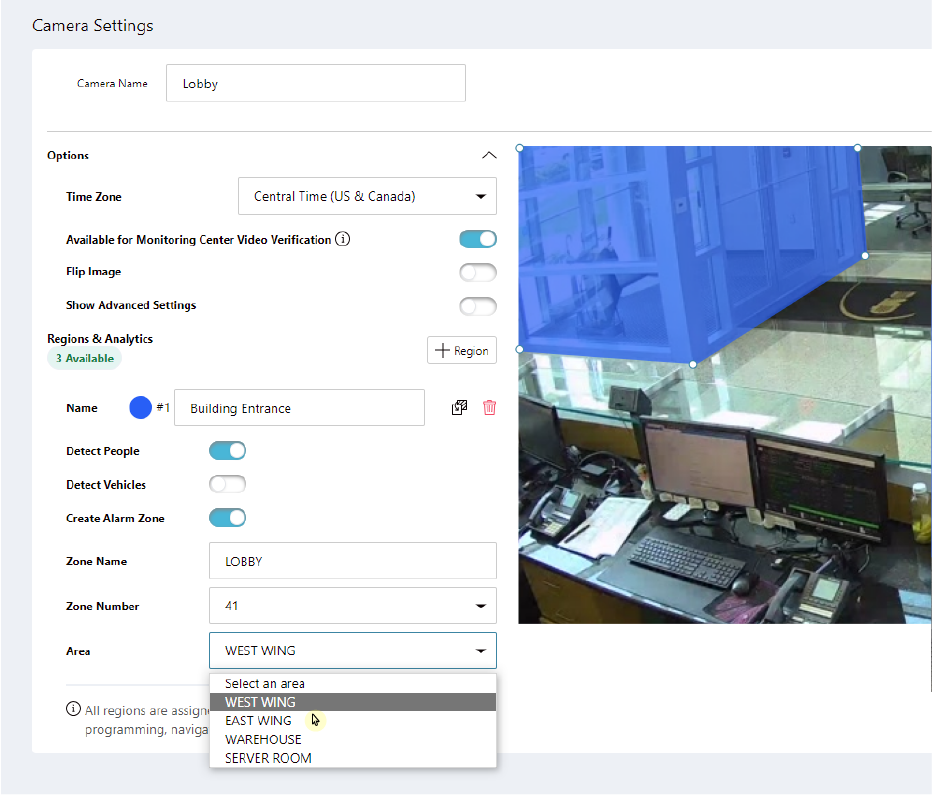

4. Assign the zone to an Area by selecting the drop-down menu.

5. To add additional detection regions, repeat steps 1-4. Up to four detection regions can be placed on a camera.

   • Note: All zones are programmed as a Night Zone by default. To edit zone programming, refer to the Edit a Zone section below.

6. Click Save to apply changes and exit the Edit Camera page. This saves the detection regions and any zones tied to them as well as any camera adjustments made previously.

To configure end user settings, refer to Virtual Keypad Setup for more information.

Additional Camera Information

Edit a Device

To edit a device, navigate to Programming for the selected system.

1. Navigate to Device Setup and locate the camera device that needs to be edited.

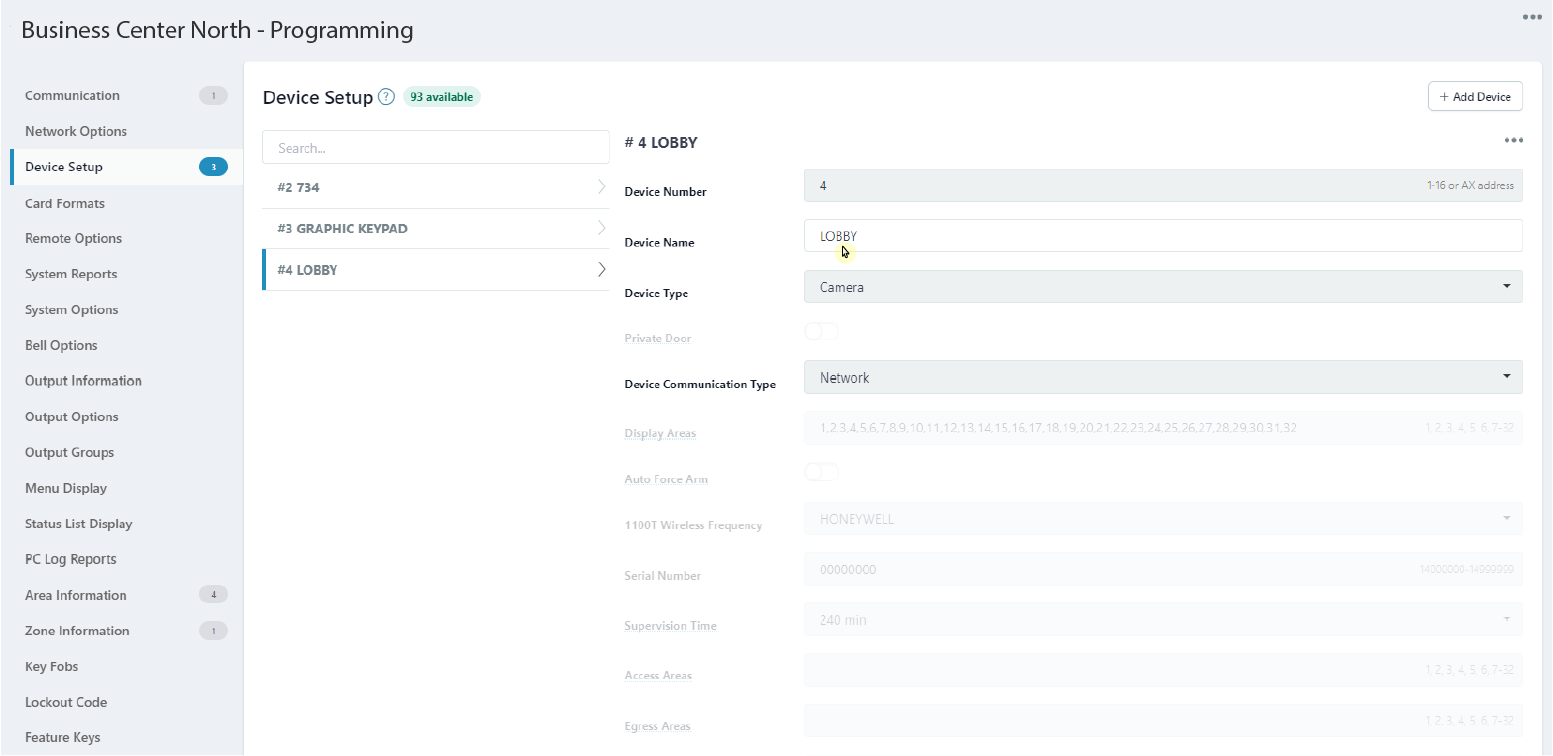

2. Select the Device Name box and type in a new name for the camera device.

3. When done editing, select Send All Changes in the top right corner of the screen to save the changes and send them to the panel.

Edit a Zone

To edit a zone, navigate to Programming for the selected system.

1. Navigate to Zone Information and locate the zone that needs to be edited.

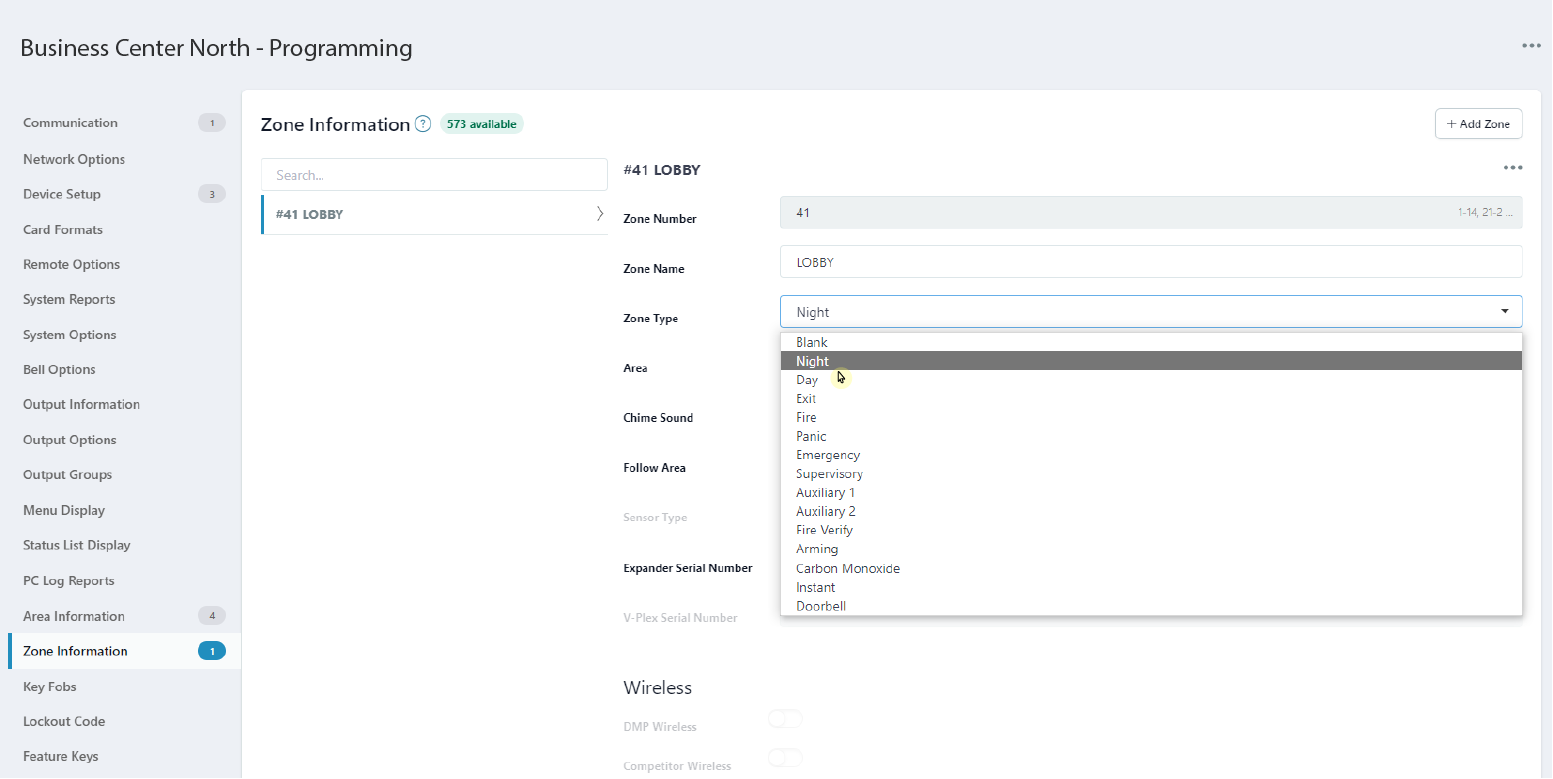

2. Select the drop-down menu next to Zone Type. This displays the zone types that can be assigned.

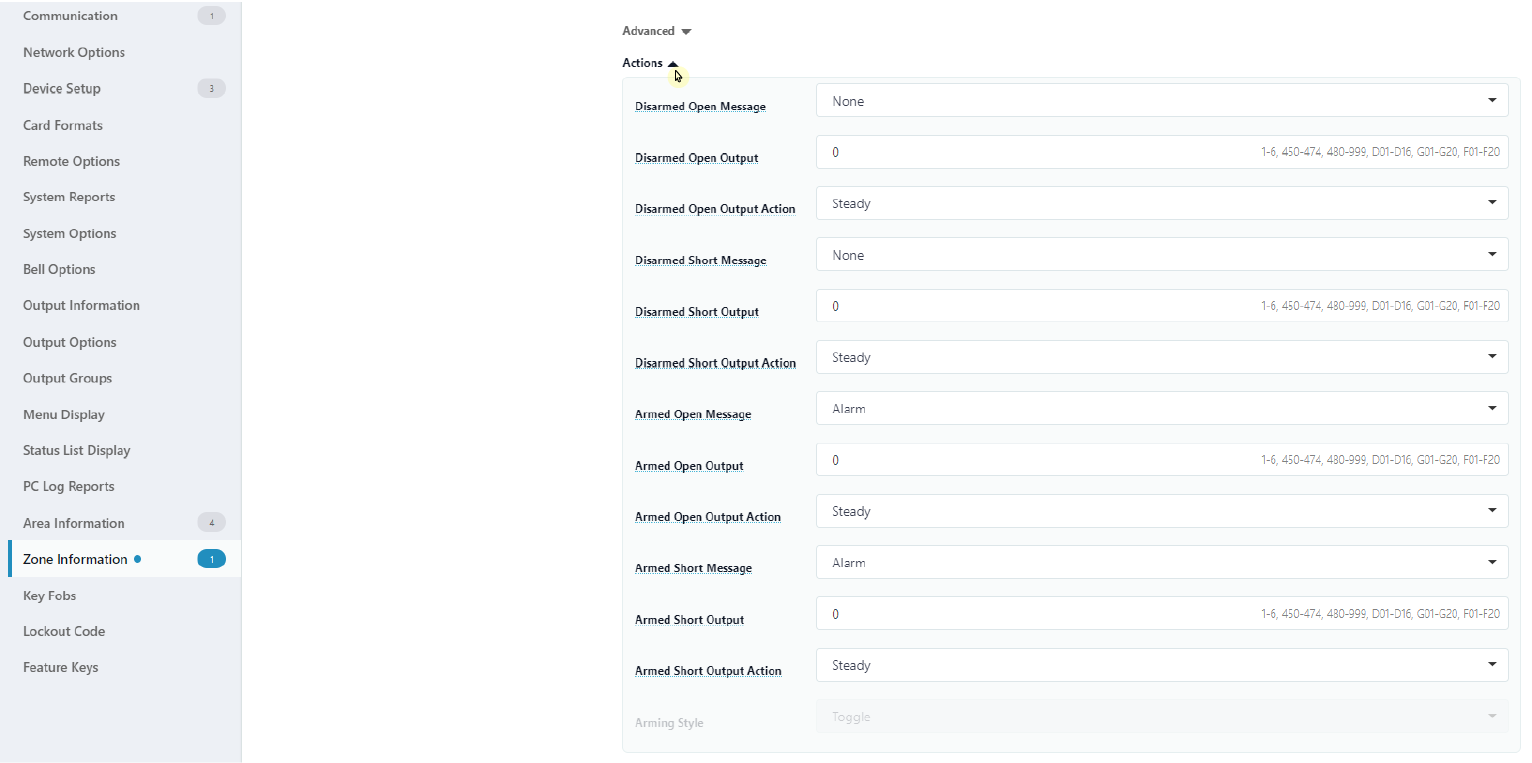

3. Select the drop-down menu next to Zone Actions. This displays the outputs that can be assigned.

4. When done editing, select Send All Changes in the top right corner of the screen to save the changes and send them to the panel.

Delete a Detection Region and Zone

To delete a detection region and a zone tied to it, navigate to System Information for the selected system.

• Note: Zones should NOT be deleted from Zone Information. If you attempt to delete a zone this way, a message appears explaining that the panel’s detection region will not properly communicate with the panel.

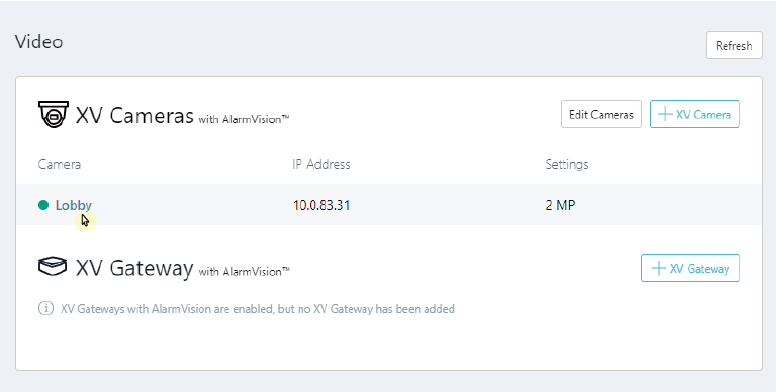

1. Select the camera that is tied to the detection region.

2. Click the Trash Can icon next to the name of the detection region.

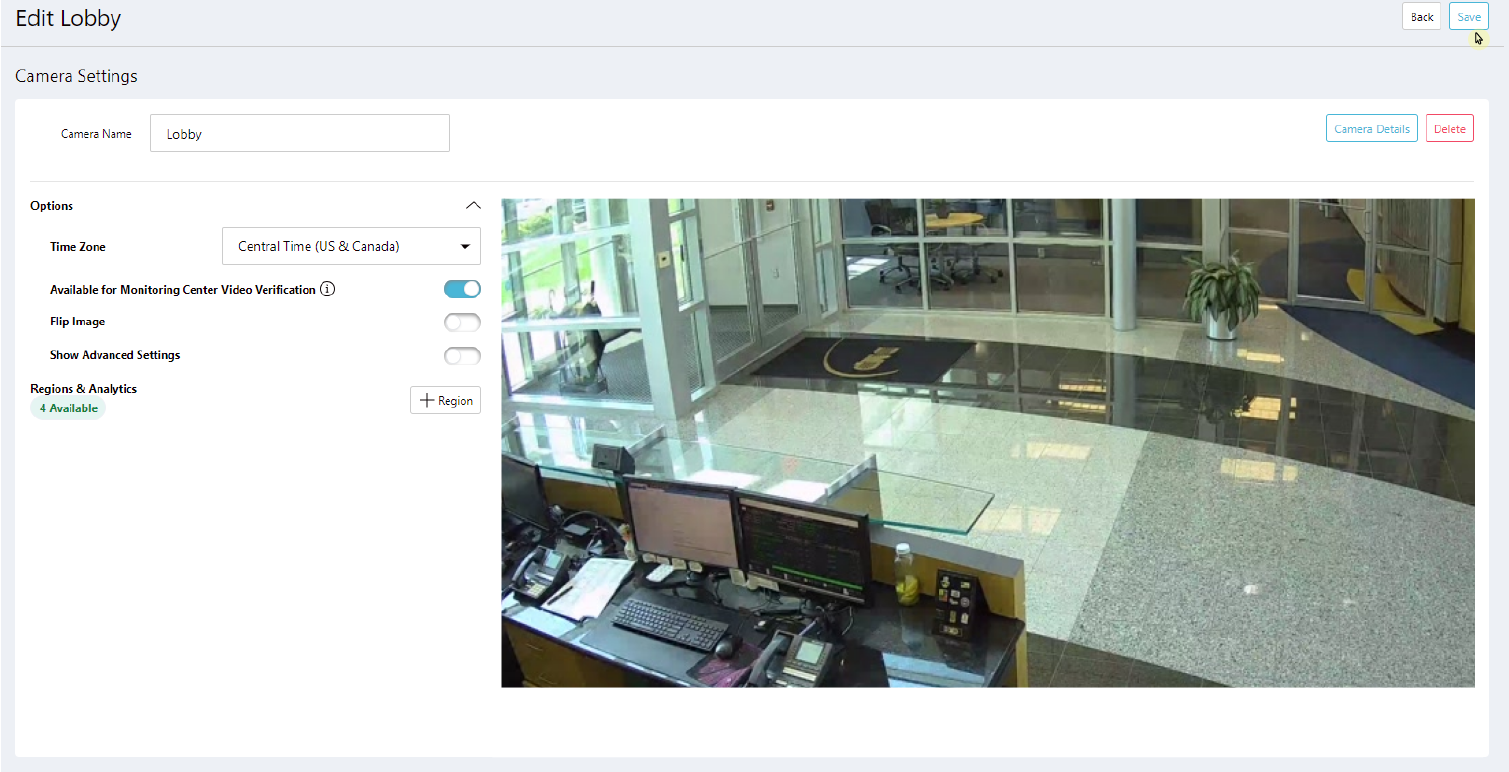

3. Click Save. This deletes the detection region and any zone tied to it.

Delete a Camera

To delete a camera, navigate to System Information for the selected system.

1. Select the camera that you want to delete.

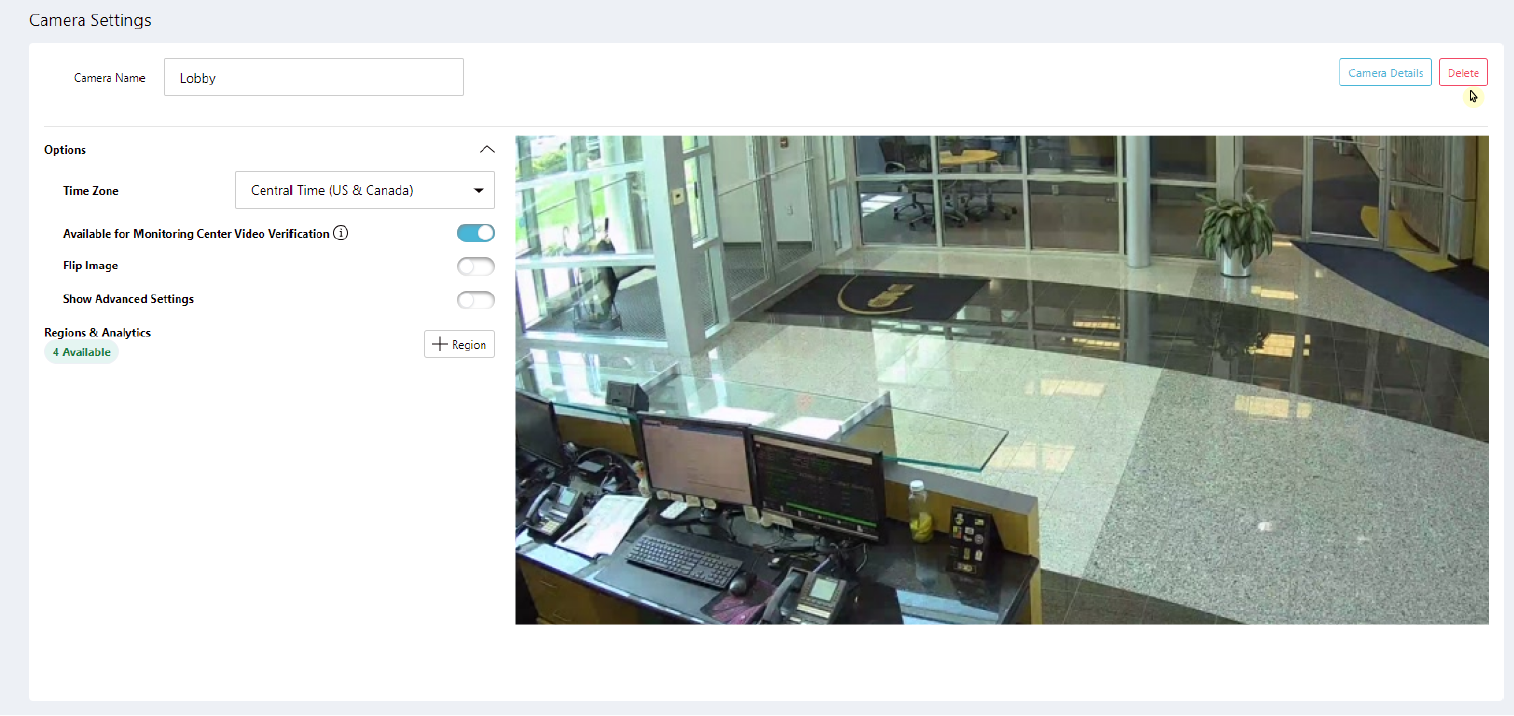

2. Click Delete in the top right corner to remove the camera from the system.

   • Note: Deleting a camera will delete all detection regions and zones tied to the camera.

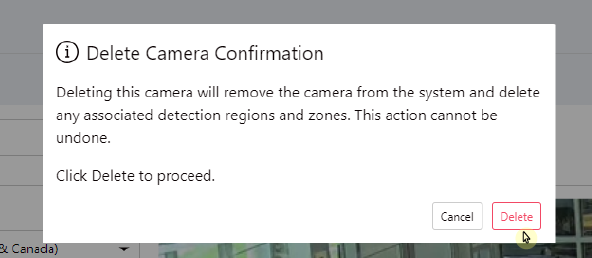

3. Click Delete in the pop-up window to confirm that you want to delete the camera.

Ordering Information

Camera Models

XV-DOME-1: 2MP Dome PoE Camera

Accessories

V-12V-PS: Camera 12V 2A Plug In Power Supply

Specifications

FCC Information

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC ID:
XV-DOME-1: CCKXC2DP

Industry Canada Information

IC Caution: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference,

2. This device must accept any interference, including interference that may cause undesired operation of the device.

This Class [B] digital apparatus complies with Canadian ICES-003.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:

1. l’appareil ne doit pas produire de brouillage, et

2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
L’appareil a été évalué pour répondre aux exigences générales d’exposition RF.
L’appareil peut être utilisé dans des conditions d’exposition fixes / mobiles.

Caution:
Operating Frequency Range band 5150-5250 MHz “for indoor use only.”
